ADRF5720BCCZN-R7 - Analog Devices

Description: 6Bit 0.5dBStep 31.5dB 40GHz 24-Pin LGA EP T/R

Download ADRF5720BCCZN-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

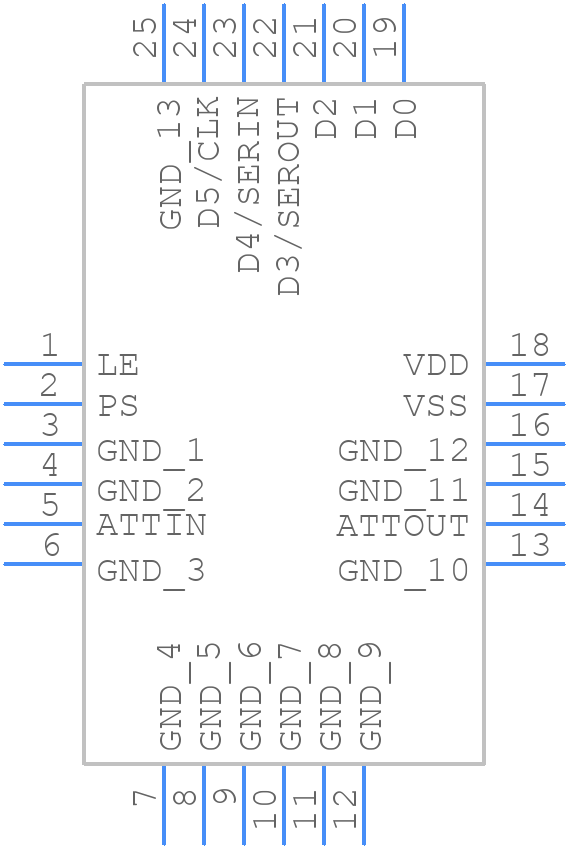

ADRF5720BCCZN-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF5720BCCZN-R7 - Analog Devices PCB footprint - Other - Other - 4 mm × 4 mm Body and 0.75 mm Package Height (CC-24-5)
click to zoom
3D Models
ADRF5720BCCZN-R7 - Analog Devices - 3D model - Other - 4 mm × 4 mm Body and 0.75 mm Package Height (CC-24-5)
click to zoom

ADRF5720BCCZN-R7 Details

  • Manufacturer Part Number:

    ADRF5720BCCZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    CC-24-5

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-07-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE, I/P POWER-MAX(PEAK)=1.26W

  • Attenuation-Nom:

    31.5 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27.99 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    40000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Power Supplies:

    +-3.3 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    1.43

ADRF5720BCCZN-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use 50Ω transmission lines to minimize signal reflections.
  • The device requires a single 5V supply voltage. Ensure the voltage supply is clean and regulated, and decouple the supply lines with 10nF and 100nF capacitors. Bias the device with a 10kΩ resistor from VCC to the bias pin.
  • The device can handle up to 30dBm of input power. Exceeding this limit may cause damage to the device or affect its performance.
  • Use a spectrum analyzer to check the input and output signals. Verify the power supply voltage and decoupling. Check for proper termination and impedance matching. Consult the datasheet and application notes for troubleshooting guides.
  • The device is rated for operation up to 125°C. However, high temperatures may affect the device's performance and reliability. Ensure proper heat sinking and thermal management to maintain a safe operating temperature.
