ADRF5721BCCZN - Analog Devices

Description: Attenuators 16 lead LGA

Download ADRF5721BCCZN Model

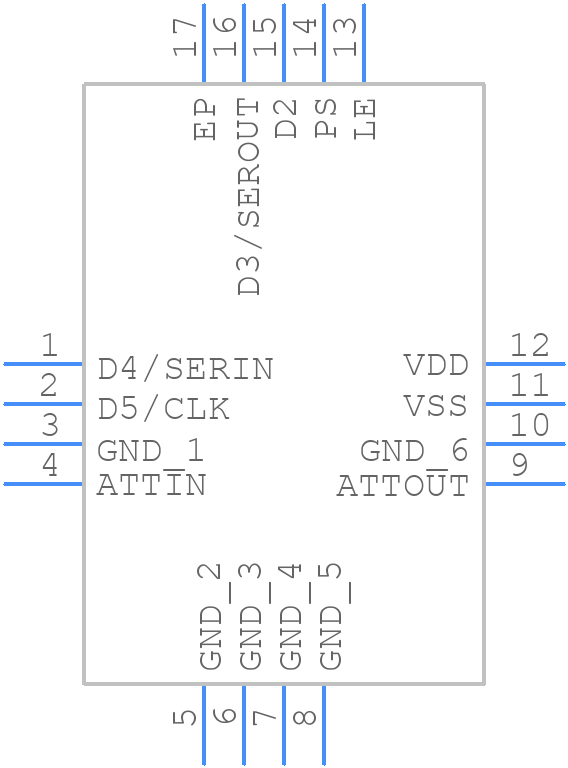

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF5721BCCZN - Analog Devices PCB footprint - Other - Other - [LGA] 2.5 mm × 2.5 mm Body and 0.75 mm Package Height (CC-16-6)
click to zoom
3D Models
ADRF5721BCCZN - Analog Devices  - 3D model - Other - [LGA] 2.5 mm × 2.5 mm Body and 0.75 mm Package Height (CC-16-6)
click to zoom

ADRF5721BCCZN Details

  • Manufacturer Part Number:

    ADRF5721BCCZN

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CC-16-6

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-09-14

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    CMOS COMPATIBLE

  • Attenuation-Nom:

    30 dB

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    27 dBm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    16

  • Operating Frequency-Max:

    40000 MHz

  • Operating Frequency-Min:

    0.009 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC16,.1SQ,16

  • Power Supplies:

    +-3.3 V

  • RF/Microwave Device Type:

    VARIABLE ATTENUATOR

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • VSWR-Max:

    1.38

ADRF5721BCCZN Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize coupling. Use a common mode choke or a ferrite bead to filter the power supply.
  • The ADRF5721BCCZN requires a bias voltage of 5V ± 10% and a bias current of 10mA to 20mA. Ensure the bias voltage is well-regulated and decoupled with a 10uF capacitor to minimize noise.
  • The ADRF5721BCCZN can handle up to 2W of power. However, it's recommended to derate the power handling to 1.5W to ensure reliable operation and minimize thermal stress.
  • Check the PCB layout for any signs of resonance or oscillation. Ensure the input and output impedances are matched, and the bias voltage is stable. Use a spectrum analyzer to identify any unwanted frequency components.
  • Yes, the ADRF5721BCCZN can be used in a push-pull configuration to achieve higher output power. However, ensure the two devices are properly matched and biased to avoid uneven current sharing.
