ADRF6520ACPZ-R7 - Analog Devices

Description: RF Amplifier E-Band/V-Band Baseband Prog Filters & VG

Download ADRF6520ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

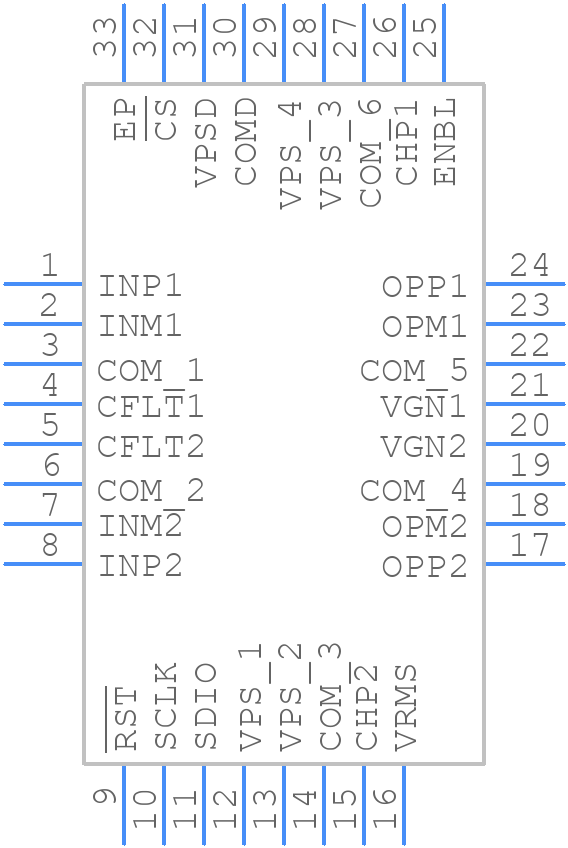

ADRF6520ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6520ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-12
click to zoom
3D Models
ADRF6520ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-12
click to zoom

ADRF6520ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6520ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

ADRF6520ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the output should be routed away from the input to minimize feedback.
  • The device requires a single 5V supply voltage. Ensure the voltage regulator is stable and has low noise. Decouple the supply voltage with a 10uF capacitor and a 100nF capacitor in parallel.
  • The device has a 50Ω input and output impedance. Use a π-network or a T-network to match the impedance to the device. The input and output should be matched separately to ensure optimal performance.
  • Use a low-noise voltage regulator, and ensure the power supply is well-filtered. Minimize the distance between the device and the voltage regulator. Use a ground plane to reduce noise coupling.
  • The device operates from -40°C to 125°C. However, the performance may degrade at extreme temperatures. Ensure proper thermal management and heat sinking to maintain optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF6520ACPZ-R7 Overview

Use the download button to access the ADRF6520ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
