ADRF6520ACPZ - Analog Devices

Description: RF Amplifier E-Band/V-Band Baseband Prog Filters & VG

Download ADRF6520ACPZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

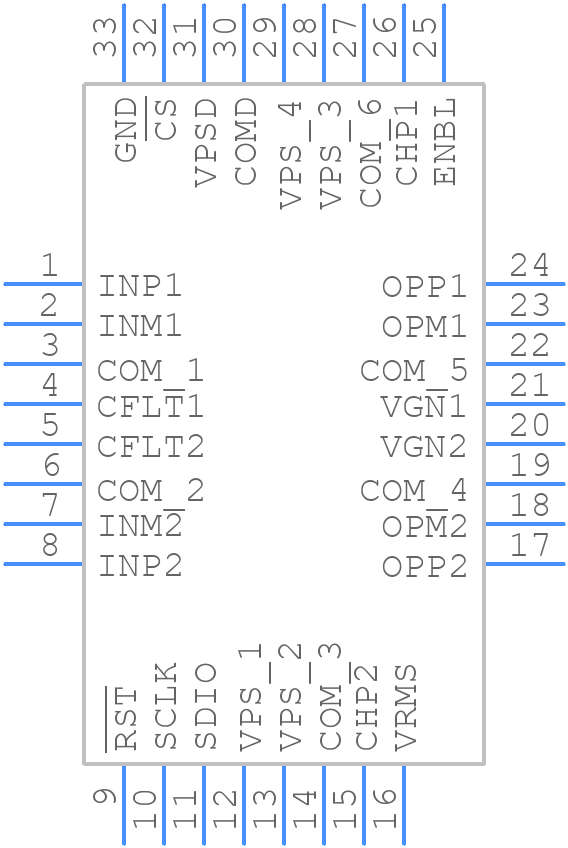

ADRF6520ACPZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6520ACPZ - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADRF6520ACPZ
click to zoom
3D Models
ADRF6520ACPZ - Analog Devices - 3D model - Quad Flat No-Lead - ADRF6520ACPZ
click to zoom

ADRF6520ACPZ Details

  • Manufacturer Part Number:

    ADRF6520ACPZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-12

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

ADRF6520ACPZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from digital signals. Use a common mode filter or a pi-filter to reduce noise and EMI.
  • Use the device's built-in calibration feature to optimize the device for a specific frequency band. The calibration process involves adjusting the device's internal registers to optimize the device's performance for the desired frequency band.
  • The ADRF6520ACPZ can handle up to 30 dBm of input power. However, the maximum power handling capability may vary depending on the specific application and operating conditions.
  • The ADRF6520ACPZ can be interfaced with a microcontroller or FPGA using a serial interface such as SPI or I2C. The device's registers can be programmed using a microcontroller or FPGA to configure the device for a specific application.
  • The typical current consumption of the ADRF6520ACPZ is around 350 mA. However, the current consumption may vary depending on the specific application and operating conditions.
