- Part Number ADRF6601ACPZ-R7
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P600X600X100-41N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADRF6601ACPZ-R7 Details
-
Manufacturer Part Number:
ADRF6601ACPZ-R7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
6 X 6 MM, ROHS COMPLIANT, MO-220VJJD-2, LFCSP-40
-
Pin Count:
40
-
Manufacturer Package Code:
CP-40-1
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
ADRF6601ACPZ-R7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADRF6601ACPZ-R7 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-1363 for more details.
-
To optimize the ADRF6601ACPZ-R7 for a specific frequency band, you can adjust the values of the external components such as the input and output matching networks, and the biasing resistors. You can use simulation tools such as ADIsimPLL or third-party tools like Genesys or AWR Microwave Office to optimize the design. Additionally, you can refer to the device's evaluation board documentation for guidance.
-
The maximum power handling capability of the ADRF6601ACPZ-R7 is dependent on the operating frequency, supply voltage, and temperature. As a general guideline, the device can handle up to +15 dBm of output power. However, it's recommended to consult the device's datasheet and application notes for more specific information and to perform thermal and power handling calculations for your specific application.
-
To troubleshoot common issues with the ADRF6601ACPZ-R7, start by verifying the power supply and biasing conditions. Check for proper termination and matching of the input and output ports. Use a spectrum analyzer to check for spurious signals or oscillations. Consult the device's datasheet and application notes for troubleshooting guides and common pitfalls to avoid. You can also contact Analog Devices' technical support for further assistance.
-
Thermal management is critical for the ADRF6601ACPZ-R7, as high temperatures can affect its performance and reliability. Key considerations include providing adequate heat sinking, using a thermal interface material, and keeping the device away from heat sources. The device's junction temperature should be kept below 125°C. Consult the device's datasheet and application notes for more information on thermal management and design guidelines.
Trust Checks
System Verified
ADRF6601ACPZ-R7 Overview

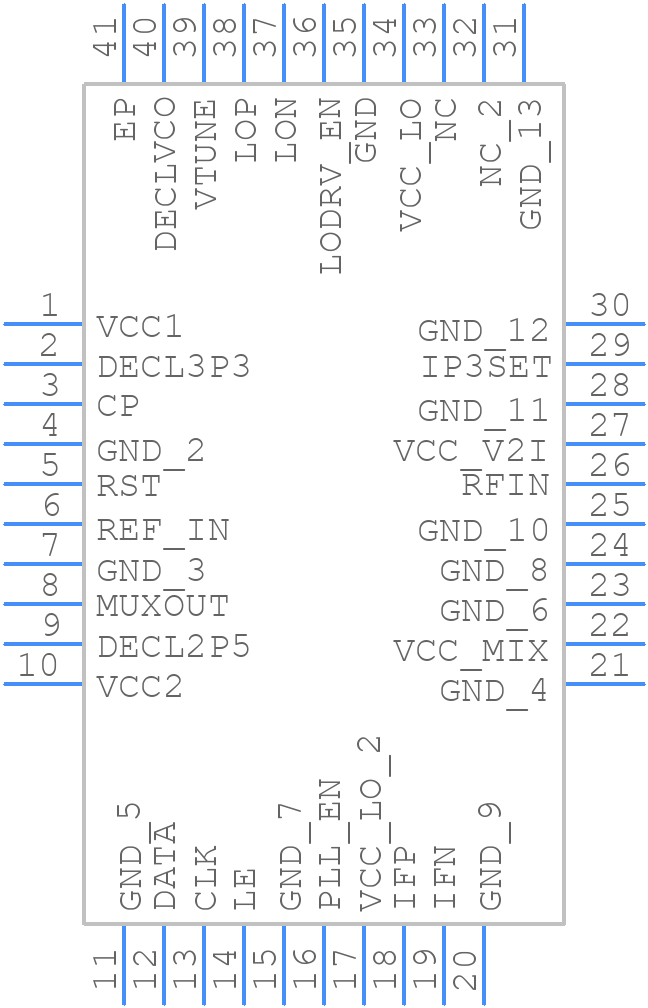

Use the download button to access the ADRF6601ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
