ADRF6612ACPZ-R7 - Analog Devices

Description: RF Mixer Wideband Passive Mixer

Download ADRF6612ACPZ-R7 Model
Schematic
symbols

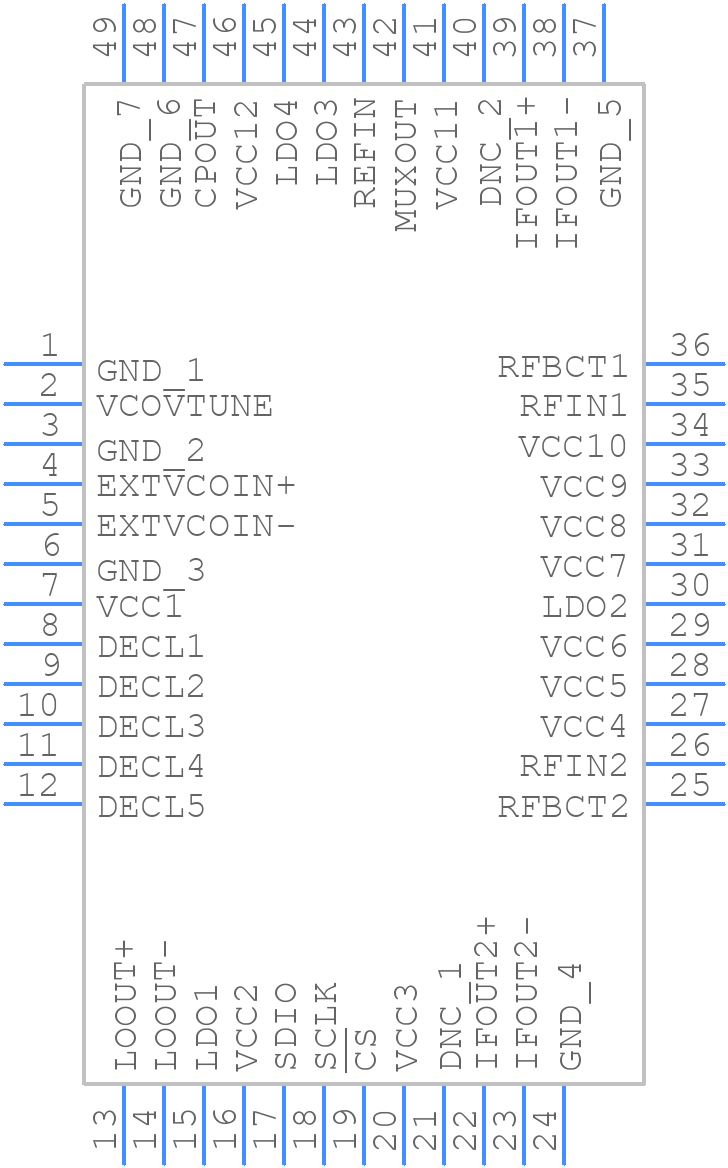

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF6612ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-13 (LFCSP)
click to zoom
3D Models
ADRF6612ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-48-13 (LFCSP)
click to zoom

ADRF6612ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6612ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-220WKKD, 48 PIN

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-13

  • ECCN Code:

    5A991.G

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Operating Frequency-Max:

    3000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DOUBLE BALANCED

ADRF6612ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout should ensure minimal signal path lengths, proper grounding, and thermal vias to dissipate heat. A thermal pad on the bottom of the package should be connected to a solid ground plane to dissipate heat. A 4-layer PCB with a dedicated ground plane is recommended.
  • Use a network analyzer to measure the input and output impedance of the device. Then, use a simulation tool like ADS or AWR to design and optimize the matching networks for maximum gain and linearity. Consider using a pi-network or a T-network topology.
  • Follow the recommended biasing and tuning procedure outlined in the datasheet. Start by setting the VCC and VEE voltages, then adjust the bias resistors and capacitors to achieve the desired operating point. Use a variable voltage source to adjust the bias voltage and monitor the output power and gain.
  • Monitor the output power, voltage, and current to ensure they are within the specified limits. Use a power detector or a current sense resistor to monitor the output power and current. Ensure the device is operated within the recommended temperature range and that the thermal management is adequate.
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the device pins or exposed internal components.
