ADRF6620ACPZ-R7 - Analog Devices

Description: RF Mixer Integrated DPD Mixer with WB Synth

Download ADRF6620ACPZ-R7 Model

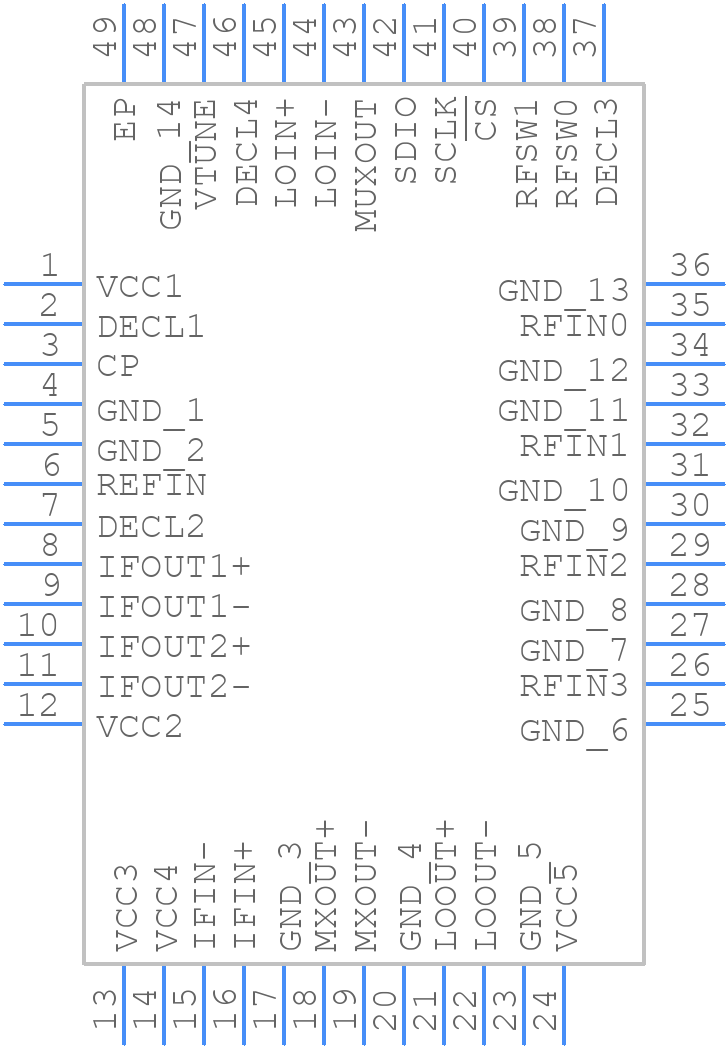

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF6620ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-48-9
click to zoom
3D Models
ADRF6620ACPZ-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-48-9
click to zoom

ADRF6620ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6620ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    CP-48-9

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ADRF6620ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 5V supply, and the VCC pin should be decoupled with a 0.1uF capacitor to ground. The VEE pin should be connected to a quiet analog ground, and the VREF pin should be connected to a stable 2.5V reference voltage.
  • The maximum input power that the ADRF6620ACPZ-R7 can handle is +10dBm. Exceeding this limit may cause compression or damage to the device.
  • The device can be optimized for a specific frequency band by adjusting the values of the external components, such as the input and output matching networks, and the biasing resistors. The optimal component values will depend on the specific frequency band of interest.
  • The typical current consumption of the ADRF6620ACPZ-R7 is 120mA from a 5V supply. However, this can vary depending on the specific application and operating conditions.
