A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces as short as possible and use 50-ohm microstrip lines. Avoid vias and right-angle bends in the RF path.
The device requires a single 5V supply. Ensure the voltage regulator is stable and has low noise. Decouple the supply lines with 10uF and 100nF capacitors. Use a 1kohm resistor in series with the bias pin to prevent oscillations.
The device can handle up to 23dBm of input power. Exceeding this limit may cause compression or damage to the device. Use an attenuator or a limiter to prevent overdrive.
Use the device's internal matching network and adjust the external components (L1, L2, C1, and C2) to optimize the impedance match for the desired frequency band. Use a network analyzer to measure and optimize the S-parameters.
The device is specified to operate from -40°C to 85°C. However, optimal performance is achieved between 0°C and 60°C. Ensure proper thermal management and heat sinking to prevent overheating.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ADRF6655ACPZ-R7 Overview

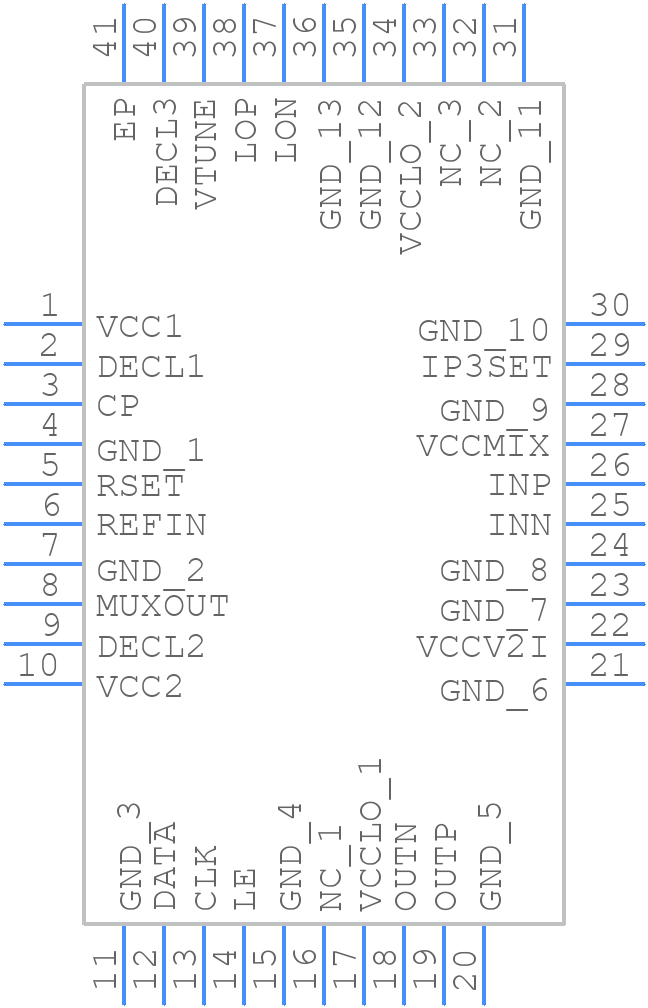

Use the download button to access the ADRF6655ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF6,
or try a keyword search, such as PLL or Frequency Synthesis Circuits
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
