ADRF6702ACPZ-R7 - Analog Devices

Description: 1200 MHz to 2400 MHz Quadrature Modulator with 1550 MHz to 2150 MHz Fractional-N PLL & Integrated VCO

Download ADRF6702ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

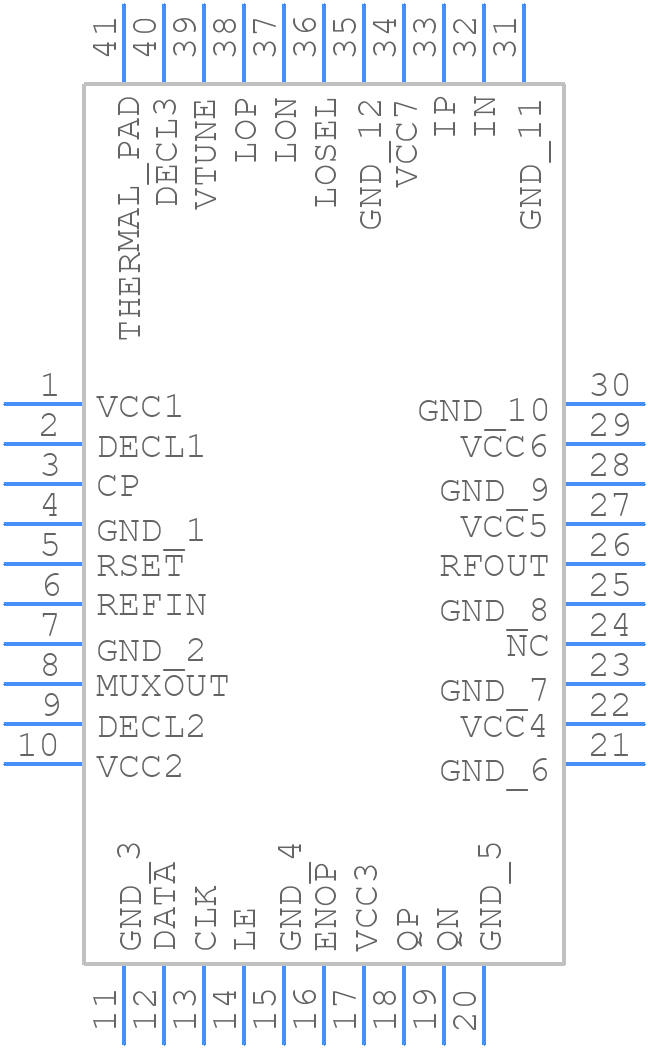

Symbol
ADRF6702ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6702ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-40-1
click to zoom
3D Models
ADRF6702ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-40-1
click to zoom

ADRF6702ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6702ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CP-40-1, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e3

  • Modulation Technique:

    I/Q

  • Operating Frequency-Max:

    2400 MHz

  • Operating Frequency-Min:

    1200 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    MODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

ADRF6702ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the output should be routed away from the input to minimize feedback.
  • The device requires a single 5V supply voltage. Ensure the voltage supply is clean and well-regulated, and decouple the supply lines with 10nF and 100nF capacitors.
  • The maximum input power is +10dBm. Exceeding this may cause compression or damage to the device.
  • Use the device's internal matching network and adjust the external components (L1, L2, C1, and C2) to optimize the device for the desired frequency band.
  • The typical current consumption is 35mA at 5V supply voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF6702ACPZ-R7 Overview

Use the download button to access the ADRF6702ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF6, or try a keyword search, such as RF/Microwave Modulator/Demodulators
