- Part Number ADRF6703ACPZ-R7
- Manufacturer Analog Devices
- Pin Count 41
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN50P600X600X100-41N
- Released Date Jan 10, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADRF6703ACPZ-R7 Details
-
Manufacturer Part Number:
ADRF6703ACPZ-R7
-
Source Url Status Check Date:
2013-05-01 14:56:48.081
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
LFCSP-40
-
Pin Count:
40
-
Manufacturer Package Code:
CP-40-1
-
ECCN Code:
5A991.B
-
HTS Code:
8542.39.00.01
ADRF6703ACPZ-R7 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the RF input, and the output should be routed away from the input to minimize feedback.
-
The device requires a single 5V supply voltage. Ensure the voltage supply is clean and well-regulated, and decouple the supply lines with 10nF and 100nF capacitors.
-
The maximum input power is +10dBm. Exceeding this may cause compression or damage to the device.
-
Use the device's internal matching network and adjust the external components (L1, L2, C1, and C2) to optimize the device for the desired frequency band.
-
The typical current consumption is 35mA at 5V supply voltage. However, this may vary depending on the operating frequency and input power level.
Trust Checks
System Verified
ADRF6703ACPZ-R7 Overview

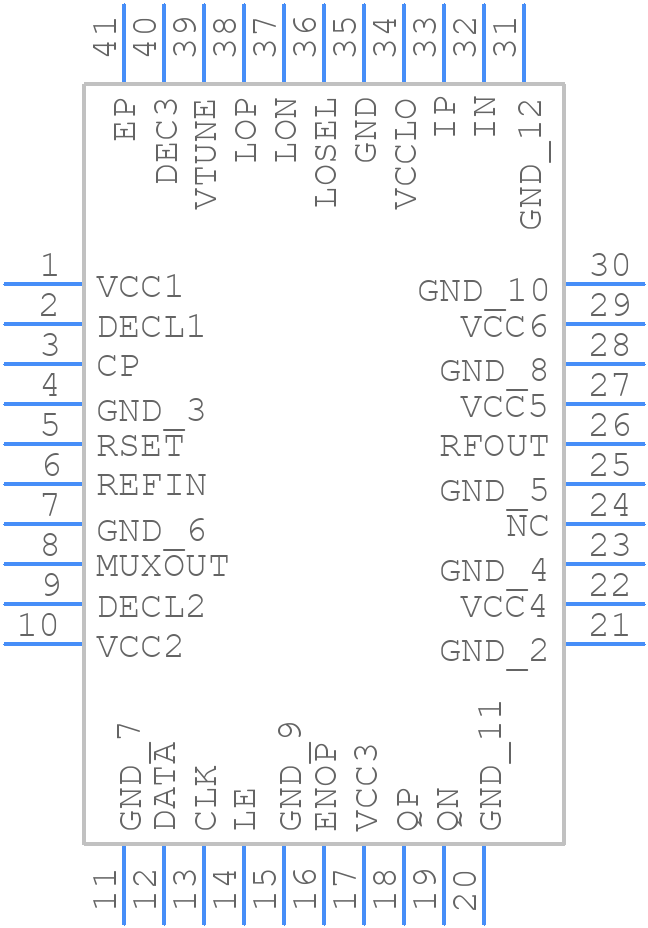

Use the download button to access the ADRF6703ACPZ-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF6,
or try a keyword search, such as RF/Microwave Modulator/Demodulators
