ADRF6720-27ACPZ-R7 - Analog Devices

Description: ANALOG DEVICES - ADRF6720-27ACPZ-R7 - DEMODULATOR, 400MHZ-3GHZ, LFCSP-40

Download ADRF6720-27ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

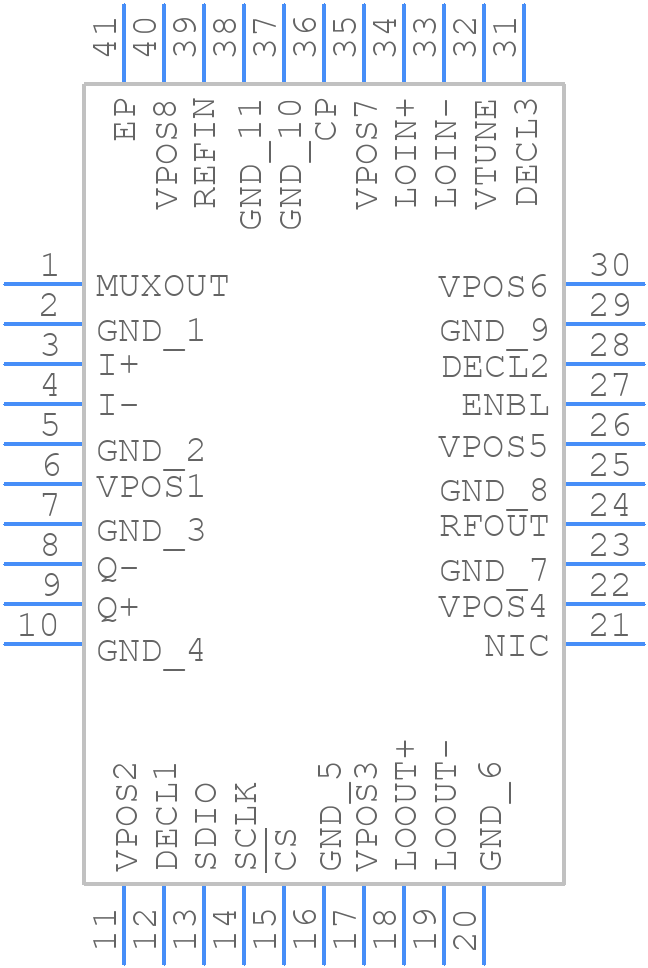

ADRF6720-27ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6720-27ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom
3D Models
ADRF6720-27ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 40-Lead Lead Frame Chip Scale Package [LFCSP_WQ]
click to zoom

ADRF6720-27ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6720-27ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-11

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

ADRF6720-27ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signal traces. Use a common mode filter or a ferrite bead to filter the power supply lines.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. The bias voltage (VB) should be set to 2.5V using a voltage divider or a voltage regulator.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. This ensures maximum power transfer and minimal signal reflection.
  • Use a spectrum analyzer to check the output spectrum for spurs or harmonics. Check the input and output signals using an oscilloscope to ensure they are within the specified voltage ranges. Verify the power supply voltages and bias voltage are within the recommended ranges.
  • Yes, but impedance matching networks may be required to ensure maximum power transfer and minimal signal reflection. Consult the datasheet and application notes for guidance on impedance matching.
