ADRF6780ACPZN-CSL footprint, schematic symbol and 3D model by Analog Devices

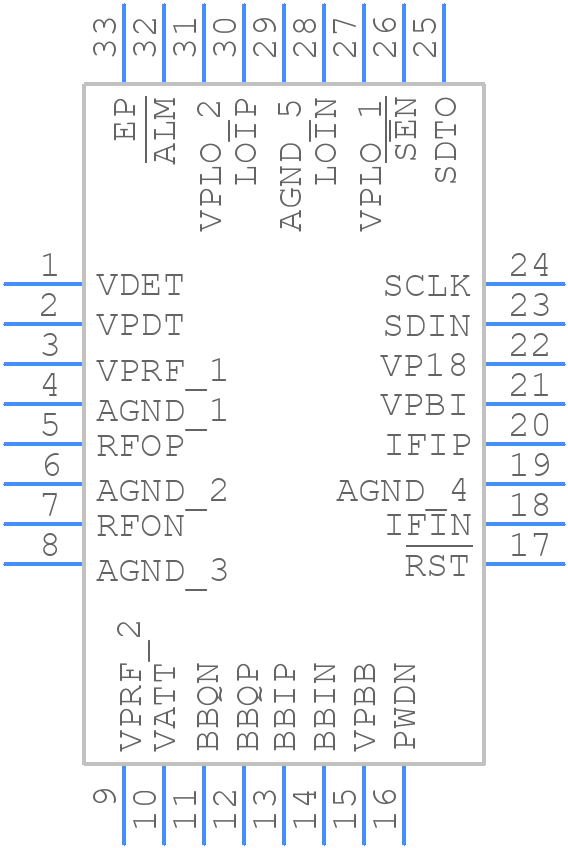

Symbol

click to zoom

PCB Footprints

ADRF6780ACPZN-CSL - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-20_2024

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADRF6780ACPZN-CSL
Part Number ADRF6780ACPZN-CSL
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - CP-32-20_2024
Released Date Nov 20, 2024
Last Modified Date Nov 20, 2024 2:52 PM UTC
Pinout / Pin List Click Here (Member Only)

ADRF6780ACPZN-CSL Details

Manufacturer Part Number:
ADRF6780ACPZN-CSL
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Analog Devices Inc
YTEOL:
9
RF/Microwave Device Type:
UP CONVERTER

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ADRF6780ACPZN-CSL Overview

Use the download button to access the ADRF6780ACPZN-CSL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADRF6, or try a keyword search, such as RF/Microwave Up/Down Converters
