ADRF6780ACPZN-R2 - Analog Devices

Description: Up-Down Converters Microwave HIR

Download ADRF6780ACPZN-R2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

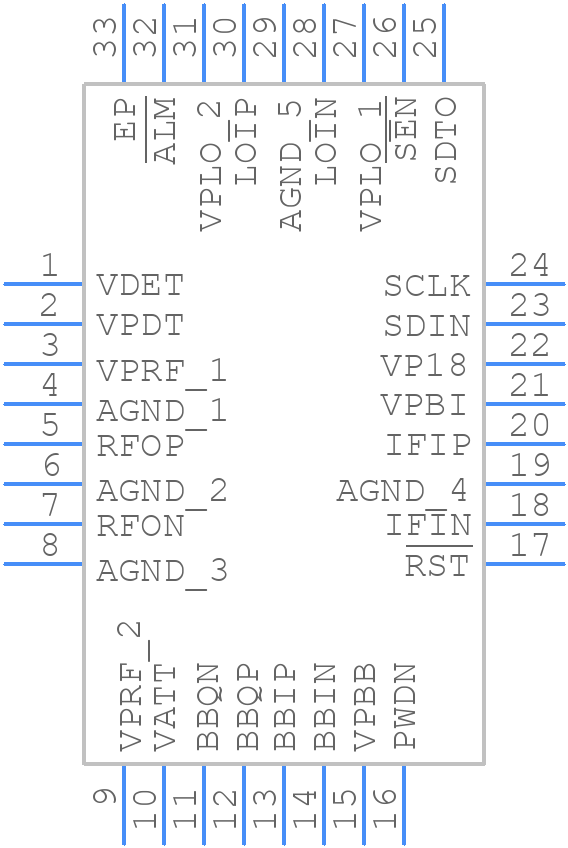

ADRF6780ACPZN-R2 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6780ACPZN-R2 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-WFQFN Exposed Pad, CSP
click to zoom
3D Models
ADRF6780ACPZN-R2 - Analog Devices - 3D model - Quad Flat No-Lead - 32-WFQFN Exposed Pad, CSP
click to zoom

ADRF6780ACPZN-R2 Details

  • Manufacturer Part Number:

    ADRF6780ACPZN-R2

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.H

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    100 Ω

  • Construction:

    COMPONENT

  • IF Frequency-Max:

    3500 MHz

  • IF Frequency-Min:

    800 MHz

  • JESD-609 Code:

    e4

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    1.8,3.3,5 V

  • RF Output Frequency-Max:

    23600 MHz

  • RF Output Frequency-Min:

    5900 MHz

  • RF/Microwave Device Type:

    UP CONVERTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Up Conversion Gain-Min:

    7 dB

ADRF6780ACPZN-R2 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for the ADRF6780ACPZN-R2 can be found in the 'PCB Layout and Thermal Management' section of the device's evaluation board documentation. It is essential to follow these guidelines to ensure optimal performance, minimize thermal resistance, and prevent thermal shutdown.
  • Analog Devices provides a troubleshooting guide for the ADRF6780ACPZN-R2 in the device's documentation. This guide covers common issues, their possible causes, and recommended solutions. Additionally, engineers can consult the device's application notes and FAQs for further assistance.
  • The recommended input and output capacitors for the ADRF6780ACPZN-R2 are listed in the device's datasheet and evaluation board documentation. In general, X7R or X5R ceramic capacitors with a voltage rating of 10V to 25V are suitable for input and output filtering. However, the specific capacitor values and types may vary depending on the application and operating conditions.
  • To ensure EMC and EMI compliance, engineers should follow proper PCB layout and design practices, such as separating analog and digital grounds, using shielding, and minimizing loop areas. Additionally, the device's evaluation board documentation provides guidelines for EMC and EMI compliance. It is also recommended to consult relevant industry standards and regulations, such as CISPR and FCC.
  • The recommended power-up and power-down sequence for the ADRF6780ACPZN-R2 is to power up the input voltage (VIN) before the enable pin (EN), and to power down the enable pin before the input voltage. This sequence helps prevent unwanted output voltage transients and ensures proper device operation.
