ADRF6780ACPZN-R7 - Analog Devices

Description: 5.9 GHz to 23.6 GHz, Wideband, Microwave Up converter

Download ADRF6780ACPZN-R7 Model

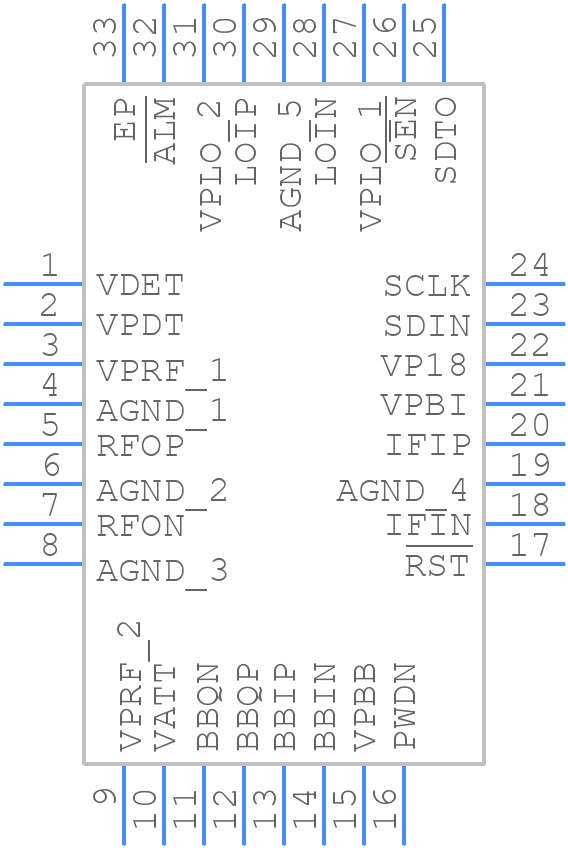

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF6780ACPZN-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-20
click to zoom
3D Models
ADRF6780ACPZN-R7 - Analog Devices  - 3D model - Quad Flat No-Lead - CP-32-20
click to zoom

ADRF6780ACPZN-R7 Details

  • Manufacturer Part Number:

    ADRF6780ACPZN-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    5A991.H

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Characteristic Impedance:

    100 Ω

  • Construction:

    COMPONENT

  • IF Frequency-Max:

    3500 MHz

  • IF Frequency-Min:

    800 MHz

  • JESD-609 Code:

    e4

  • LO Tunable:

    YES

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Power Supplies:

    1.8,3.3,5 V

  • RF Output Frequency-Max:

    23600 MHz

  • RF Output Frequency-Min:

    5900 MHz

  • RF/Microwave Device Type:

    UP CONVERTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Up Conversion Gain-Min:

    7 dB

ADRF6780ACPZN-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from the digital lines. Use a common mode filter or a pi-filter to reduce EMI.
  • The ADRF6780ACPZN-R7 requires a 3.3V power supply. Ensure the voltage regulator is stable and has low noise. Decouple the power pins with 10nF and 100nF capacitors. Use a voltage divider to set the bias voltage (VBIAS) to 1.5V.
  • The maximum input power that the ADRF6780ACPZN-R7 can handle is +10 dBm. Exceeding this limit may cause damage to the device or affect its performance.
  • Use the internal matching network to optimize the device for a specific frequency band. Adjust the external components (L1, L2, C1, and C2) to achieve the desired impedance match.
  • The recommended operating temperature range for the ADRF6780ACPZN-R7 is -40°C to +85°C. Operating outside this range may affect the device's performance and reliability.
