ADRF6780ACPZN footprint, schematic symbol and 3D model by Analog Devices

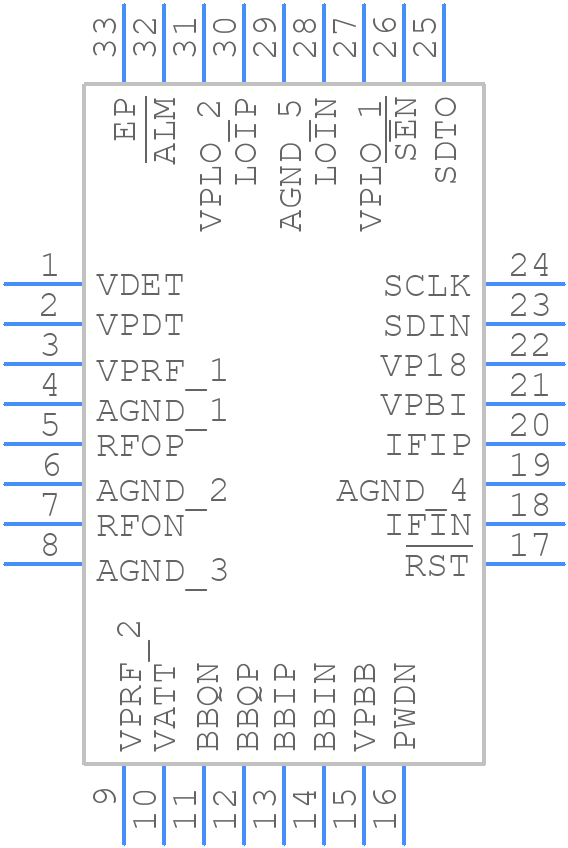

Symbol

click to zoom

PCB Footprints

ADRF6780ACPZN - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - (CP-32-20)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADRF6780ACPZN
Part Number ADRF6780ACPZN
Manufacturer Analog Devices
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - (CP-32-20)
Released Date May 19, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ADRF6780ACPZN Details

Manufacturer Part Number:
ADRF6780ACPZN
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
LFCSP-32
Pin Count:
32
Manufacturer Package Code:
CP-32-20
ECCN Code:
5A991.H
HTS Code:
8542.39.00.01
Date Of Intro:
2019-01-03
Manufacturer:
Analog Devices Inc
YTEOL:
8.5
Characteristic Impedance:
100 Ω
Construction:
COMPONENT
IF Frequency-Max:
3500 MHz
IF Frequency-Min:
800 MHz
LO Tunable:
YES
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
LCC32,.2SQ,20
Power Supplies:
1.8,3.3,5 V
RF Output Frequency-Max:
23600 MHz
RF Output Frequency-Min:
5900 MHz
RF/Microwave Device Type:
UP CONVERTER
Surface Mount:
YES
Up Conversion Gain-Min:
7 dB

ADRF6780ACPZN Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output tracks as short as possible and use 50-ohm transmission lines to minimize signal reflections.
The ADRF6780ACPZN requires a single 5V power supply. Ensure the power supply is well-regulated and decoupled with 0.1uF and 10uF capacitors. The device also requires a bias voltage of 2.5V, which can be generated using a voltage divider or a dedicated voltage reference.
The ADRF6780ACPZN can handle input powers up to +10dBm. Exceeding this limit may cause compression or damage to the device.
The ADRF6780ACPZN is a broadband device, but it can be optimized for a specific frequency band by adjusting the input and output matching networks. Use a network analyzer to optimize the impedance matching for the desired frequency band.
The typical noise figure of the ADRF6780ACPZN is around 3.5dB. However, this can vary depending on the frequency, temperature, and operating conditions.

Trust Checks

Community Provided

System Verified

Community Approved

ADRF6780ACPZN Overview

Use the download button to access the ADRF6780ACPZN schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ADRF6, or try a keyword search, such as RF/Microwave Up/Down Converters
