ADRF6801ACPZ-R7 - Analog Devices

Description: DEMOD, QUAD, 750-1150M

Download ADRF6801ACPZ-R7 Model

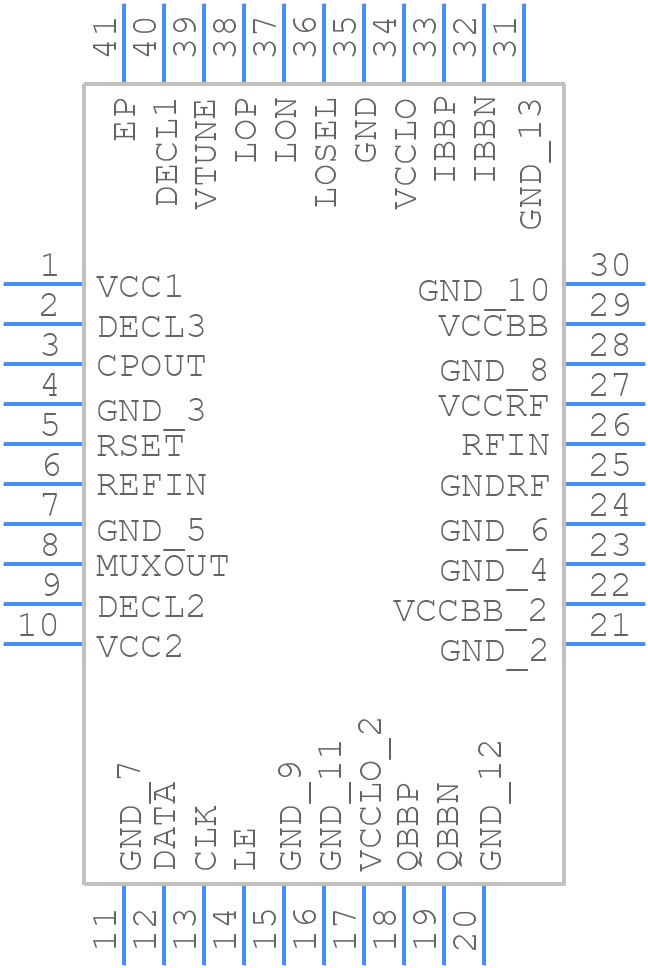

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADRF6801ACPZ-R7 - Analog Devices PCB footprint - Other - Other - QFN50P600X600X100-41N
click to zoom
3D Models
ADRF6801ACPZ-R7 - Analog Devices  - 3D model - Other - QFN50P600X600X100-41N
click to zoom

ADRF6801ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6801ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFSCP_VQ, 40 PIN

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-1

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    16 dBm

  • JESD-609 Code:

    e3

  • Modulation Technique:

    I/Q

  • Operating Frequency-Max:

    1150 MHz

  • Operating Frequency-Min:

    750 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    DEMODULATOR

  • Terminal Finish:

    Matte Tin (Sn)

ADRF6801ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout should ensure minimal signal path lengths, proper grounding, and thermal vias to dissipate heat. A thermal pad on the bottom of the package should be connected to a solid ground plane to dissipate heat. A 4-layer PCB with a dedicated ground plane is recommended.
  • To minimize power consumption, ensure that the device is operated within the recommended supply voltage range, use a low-power mode when possible, and minimize the output power of the device. Additionally, consider using a low-dropout regulator (LDO) to regulate the supply voltage.
  • Operating the device beyond the recommended temperature range can lead to reduced performance, increased power consumption, and potentially even device failure. It's essential to ensure that the device is operated within the recommended temperature range to maintain optimal performance and reliability.
  • To troubleshoot common issues, start by verifying the device's operating conditions, including supply voltage, temperature, and input power. Check the PCB layout and ensure that it meets the recommended layout guidelines. Use a spectrum analyzer to measure the output power and frequency, and consult the datasheet and application notes for troubleshooting guides.
  • The ADRF6801ACPZ-R7 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment. Avoid touching the device's pins or exposed pads to prevent ESD damage.
