ADRF6806ACPZ-R7 - Analog Devices

Description: RF DEMOD IC 50MHZ-525MHZ 40LFCSP

Download ADRF6806ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

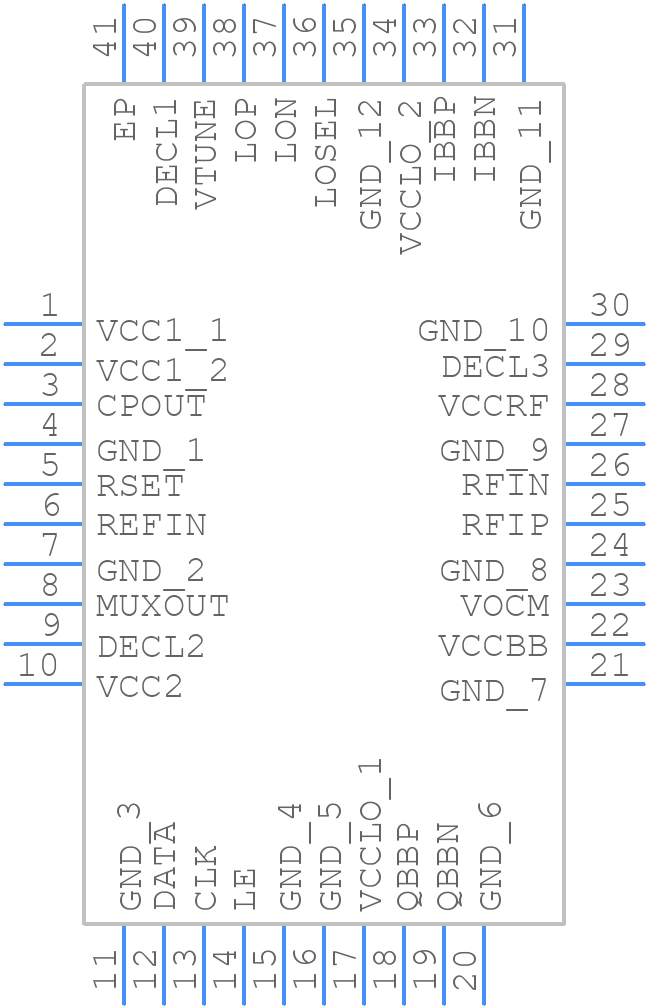

ADRF6806ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6806ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADRF6806ACPZ-R7
click to zoom
3D Models
ADRF6806ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - ADRF6806ACPZ-R7
click to zoom

ADRF6806ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6806ACPZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Package Description:

    6 X 6 MM, ROHS COMPLIANT, MO-220VJJD-2, LFCSP-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    CP-40-4

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES AS 5V SUPPLY

  • Analog IC - Other Type:

    PHASE LOCKED LOOP

  • JESD-30 Code:

    S-XQCC-N40

  • JESD-609 Code:

    e3

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    6 mm

ADRF6806ACPZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF traces short and away from digital signals. Use a common mode filter or a pi-filter to reduce EMI.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Use a voltage regulator or a low-dropout regulator to minimize noise and ripple.
  • The recommended input impedance is 50 ohms, and the recommended output impedance is also 50 ohms. Ensure the input and output matching networks are designed to match these impedances for optimal performance.
  • Use a low-pass filter or a band-pass filter at the output to reduce noise and spurs. Ensure the PCB layout is well-shielded, and use a common mode filter or a pi-filter to reduce EMI.
  • The maximum operating temperature range for the ADRF6806ACPZ-R7 is -40°C to +85°C. Ensure the device is operated within this range to ensure optimal performance and reliability.
