ADRV9040BBPZ-WB - Analog Devices

Description: 8T8R SoC with DFE, 400 MHz iBW RF Transceiver

Download ADRV9040BBPZ-WB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

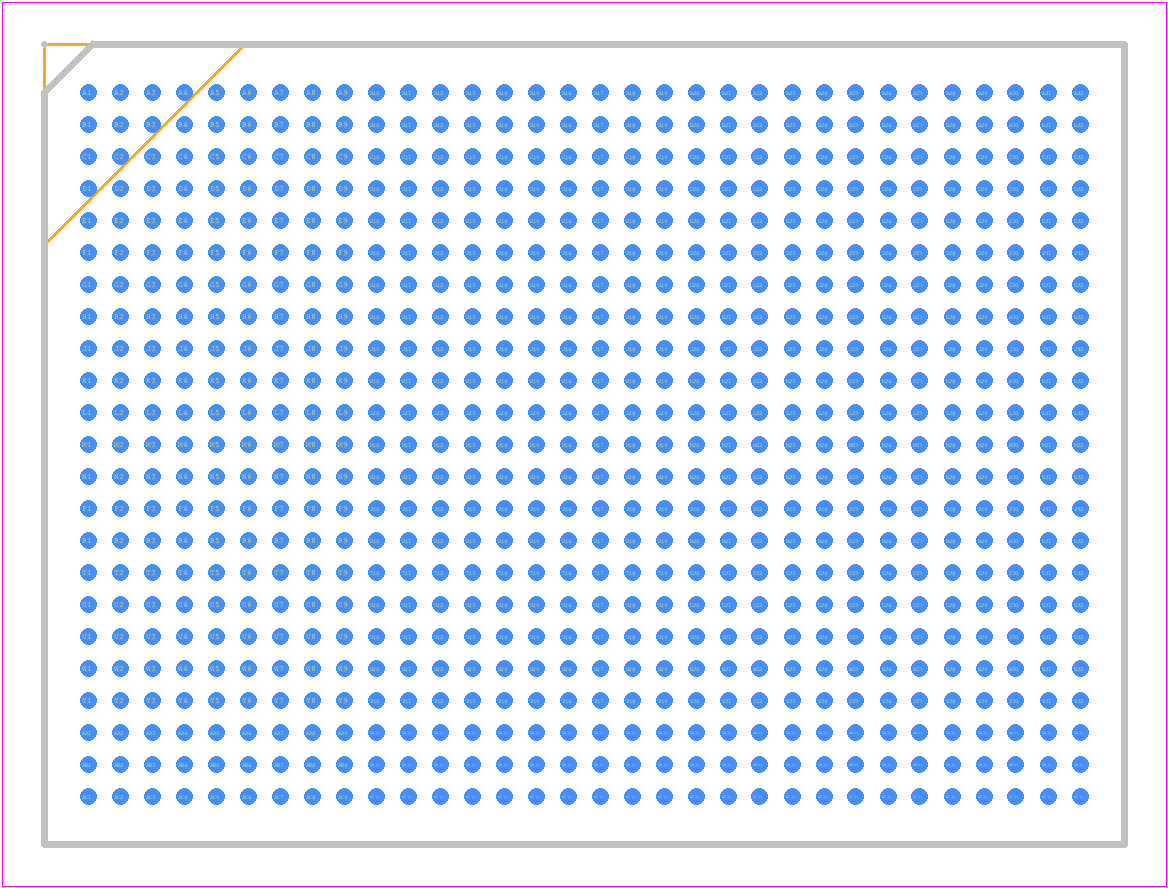

ADRV9040BBPZ-WB - Analog Devices PCB footprint - BGA - BGA - BP-736-2_2025
click to zoom
3D Models
ADRV9040BBPZ-WB - Analog Devices  - 3D model - BGA - BP-736-2_2025
click to zoom

ADRV9040BBPZ-WB Details

  • Manufacturer Part Number:

    ADRV9040BBPZ-WB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Analog Devices Inc

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

ADRV9040BBPZ-WB Frequently Asked Questions (FAQs)

  • Analog Devices provides a PCB layout guide and design guidelines in the ADRV9040BBPZ-WB evaluation board documentation, which can be found on their website. Additionally, it's recommended to follow general high-speed PCB design principles, such as using a solid ground plane, minimizing signal trace lengths, and using impedance-controlled traces.
  • The ADRV9040BBPZ-WB requires a well-regulated power supply with low noise and ripple. It's recommended to use a high-quality voltage regulator, such as the ADP5050, and to follow the power supply design guidelines provided in the datasheet. Additionally, it's important to decouple the power supply lines with capacitors and to use a pi-filter or other noise-reducing techniques to minimize power supply noise.
  • The maximum clock frequency that can be used with the ADRV9040BBPZ-WB is 2.5 GHz. However, the actual clock frequency that can be achieved may be limited by the specific application and system design. It's recommended to consult the datasheet and to perform simulations and testing to determine the maximum clock frequency that can be used in a specific design.
  • The ADRV9040BBPZ-WB can be configured for different sampling rates and bandwidths using the SPI interface. The device has several registers that control the sampling rate, bandwidth, and other parameters. It's recommended to consult the datasheet and the ADRV9040BBPZ-WB programming guide for more information on how to configure the device for specific sampling rates and bandwidths.
  • The typical power consumption of the ADRV9040BBPZ-WB is around 1.5 W at a sampling rate of 2.5 GSPS. However, the actual power consumption may vary depending on the specific application, clock frequency, and other factors. It's recommended to consult the datasheet and to perform power consumption measurements in the specific system design.
