ADSP-2101BS-100 - Analog Devices

ADSP-2101BS-100 Details

• Manufacturer Part Number:

  ADSP-2101BS-100

• Part Life Cycle Code:

  Obsolete

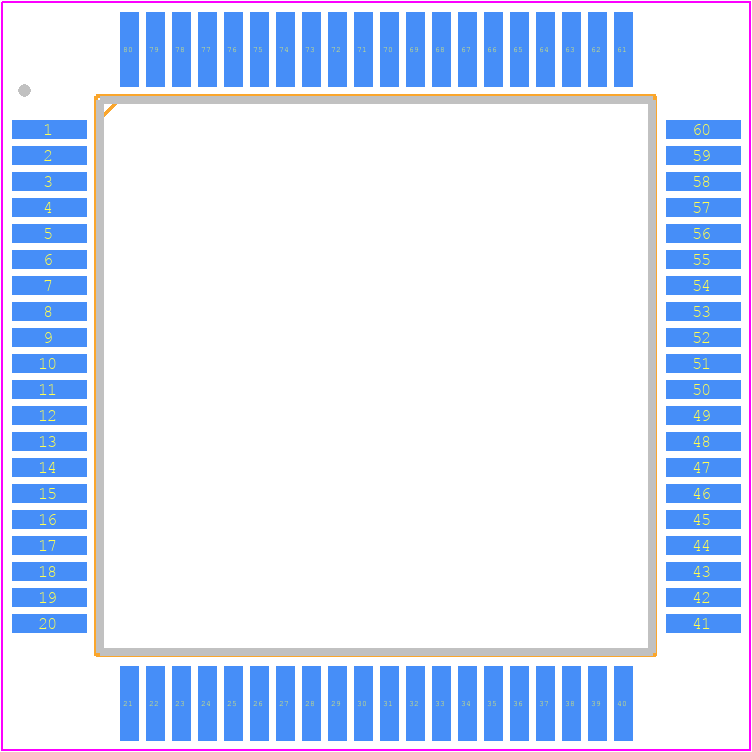

• Part Package Code:

  QFP

• Package Description:

  QFP-80

• Pin Count:

  80

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Address Bus Width:

  14

• Barrel Shifter:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  25 MHz

• External Data Bus Width:

  24

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G80

• JESD-609 Code:

  e0

• Length:

  14 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of External Interrupts:

  1

• Number of Serial I/Os:

  2

• Number of Terminals:

  80

• Number of Timers:

  1

• On Chip Data RAM Width:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QFP

• Package Equivalence Code:

  QFP80,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK

• Qualification Status:

  Not Qualified

• RAM (words):

  512

• Seated Height-Max:

  2.45 mm

• Supply Current-Max:

  38 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
