ADSP-21061KSZ-200 - Analog Devices

ADSP-21061KSZ-200 Details

• Manufacturer Part Number:

  ADSP-21061KSZ-200

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

  ROHS COMPLIANT, MQFP-240

• Pin Count:

  240

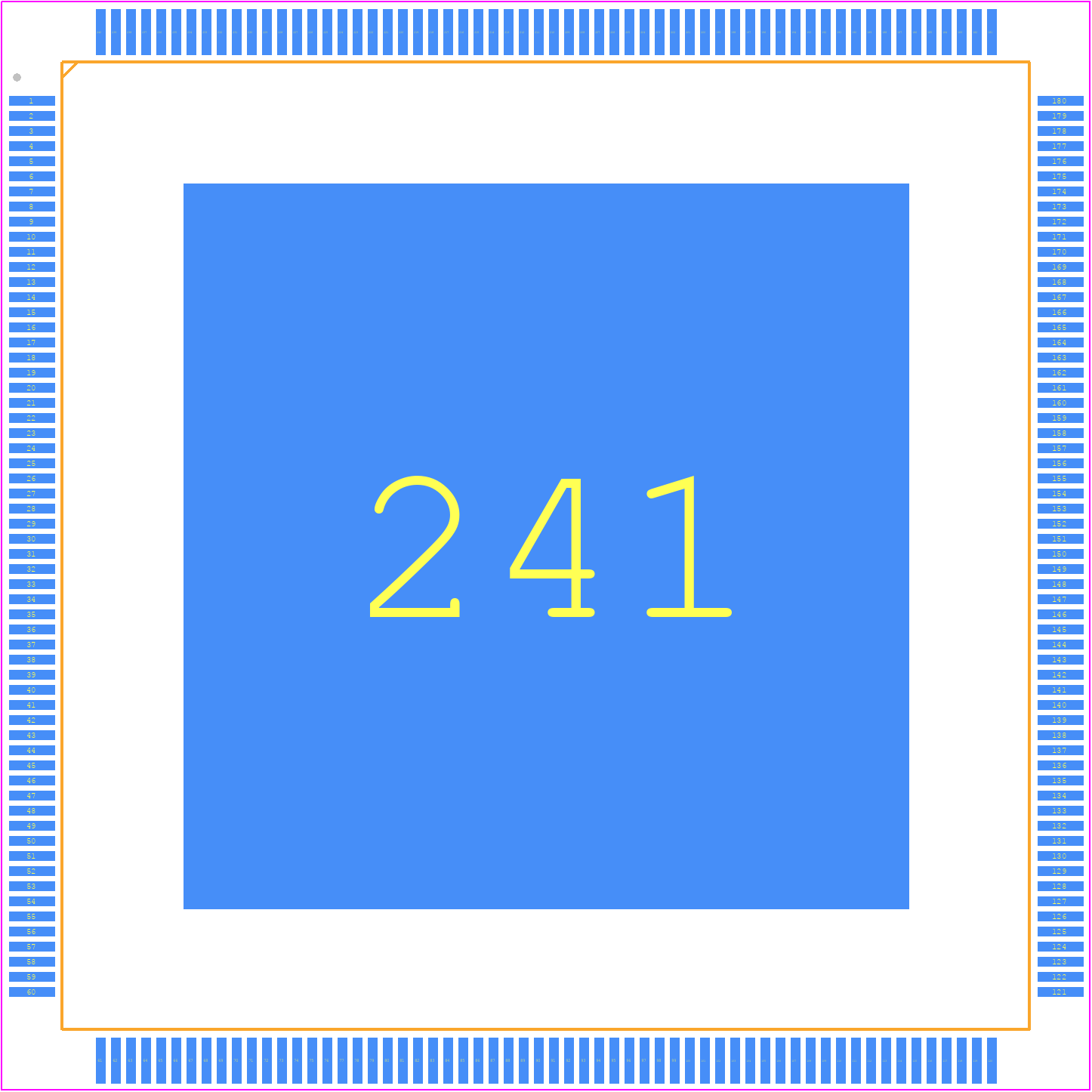

• Manufacturer Package Code:

  SP-240

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Address Bus Width:

  32

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  48

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G240

• JESD-609 Code:

  e3

• Length:

  32 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  6

• Number of External Interrupts:

  3

• Number of Serial I/Os:

  2

• Number of Terminals:

  240

• Number of Timers:

  1

• On Chip Data RAM Width:

  32

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HFQFP

• Package Equivalence Code:

  HQFP240,1.37SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  32768

• ROM Programmability:

  OTPROM

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  850 mA

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  4.75 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  32 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
