ADSP-21065LCS-240 - Analog Devices

Description: IC DSP CONTROLLER 32BIT 208MQFP

Download ADSP-21065LCS-240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21065LCS-240 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

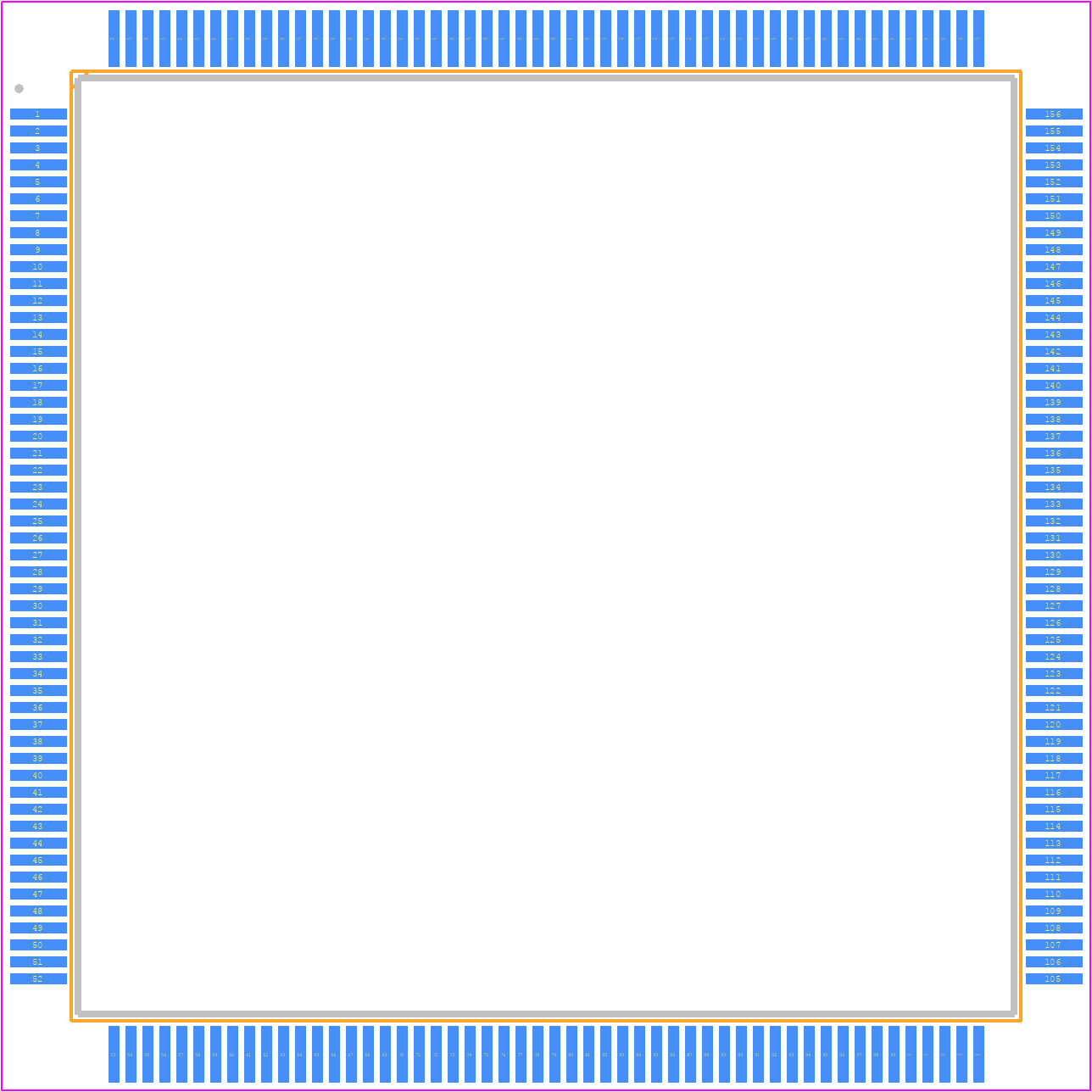

ADSP-21065LCS-240 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 208-Lead Metric Quad Flat Package [MQFP] (S-208-2)
click to zoom
3D Models
ADSP-21065LCS-240 - Analog Devices - 3D model - Quad Flat Packages - 208-Lead Metric Quad Flat Package [MQFP] (S-208-2)
click to zoom

ADSP-21065LCS-240 Details

  • Manufacturer Part Number:

    ADSP-21065LCS-240

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    MS-029FA-1, MQFP-208

  • Pin Count:

    208

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    30 MHz

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e0

  • Length:

    28 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • RAM (words):

    16384

  • Seated Height-Max:

    4.1 mm

  • Supply Current-Max:

    470 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER
