ADSP-21065LKCA-264 - Analog Devices

Description: IC DSP CTLR 32BIT 196CSBGA

Download ADSP-21065LKCA-264 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21065LKCA-264 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

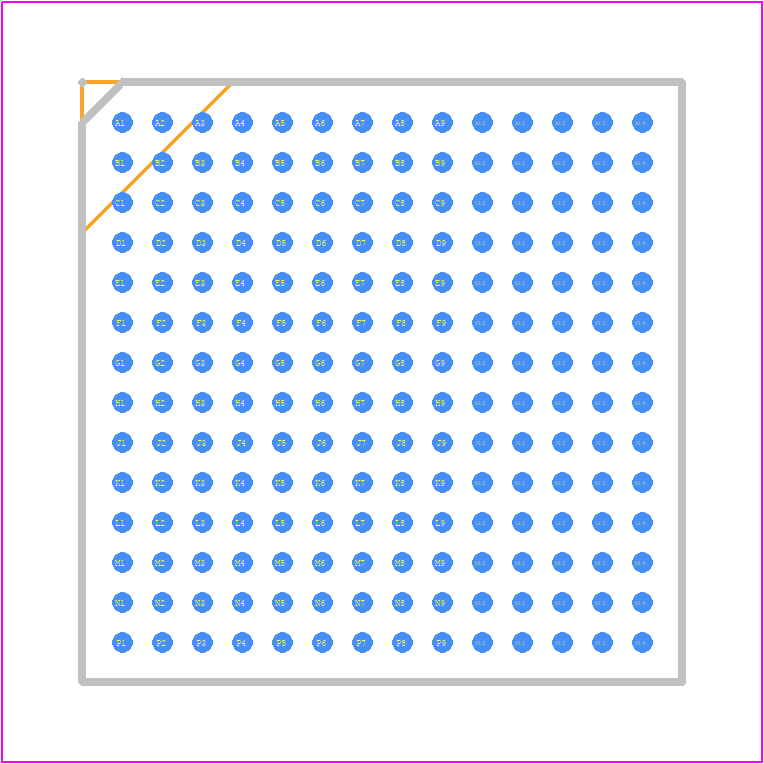

ADSP-21065LKCA-264 - Analog Devices PCB footprint - BGA - BGA - Mini-BGA
click to zoom
3D Models
ADSP-21065LKCA-264 - Analog Devices - 3D model - BGA - Mini-BGA
click to zoom

ADSP-21065LKCA-264 Details

  • Manufacturer Part Number:

    ADSP-21065LKCA-264

  • Source Url Status Check Date:

    2013-05-01 14:56:48.265

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    CHIP SCALE, MS-034AAE-1, BGA-196

  • Pin Count:

    196

  • Manufacturer Package Code:

    BC-196-3

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    33.33 MHz

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B196

  • JESD-609 Code:

    e0

  • Length:

    15 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    196

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA196,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • RAM (words):

    17408

  • Seated Height-Max:

    1.9 mm

  • Supply Current-Max:

    510 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Lead/Silver (Sn/Pb/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21065LKCA-264 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and minimizes the risk of latch-up or damage to the device.
  • To optimize performance, consider the following: use the highest possible clock frequency, minimize memory accesses, use the cache effectively, and optimize code using the compiler's optimization options. Additionally, consider using the device's built-in accelerators and peripherals to offload tasks from the core processor.
  • The ADSP-21065LKCA-264 has a maximum junction temperature of 150°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking airflow to the device. Also, consider using thermal interface materials to improve heat transfer between the device and heat sink.
  • To ensure EMC, follow proper PCB design practices, use shielding and grounding techniques, and minimize noise radiation. Also, consider using filters and common-mode chokes to reduce electromagnetic interference (EMI).
  • In harsh environments, consider the device's operating temperature range, humidity, and vibration tolerance. Ensure the device is properly packaged and sealed, and consider using conformal coatings or potting compounds to protect the device from environmental stresses.
