ADSP-21065LKS-264 - Analog Devices

ADSP-21065LKS-264 Details

• Manufacturer Part Number:

  ADSP-21065LKS-264

• Part Life Cycle Code:

  Obsolete

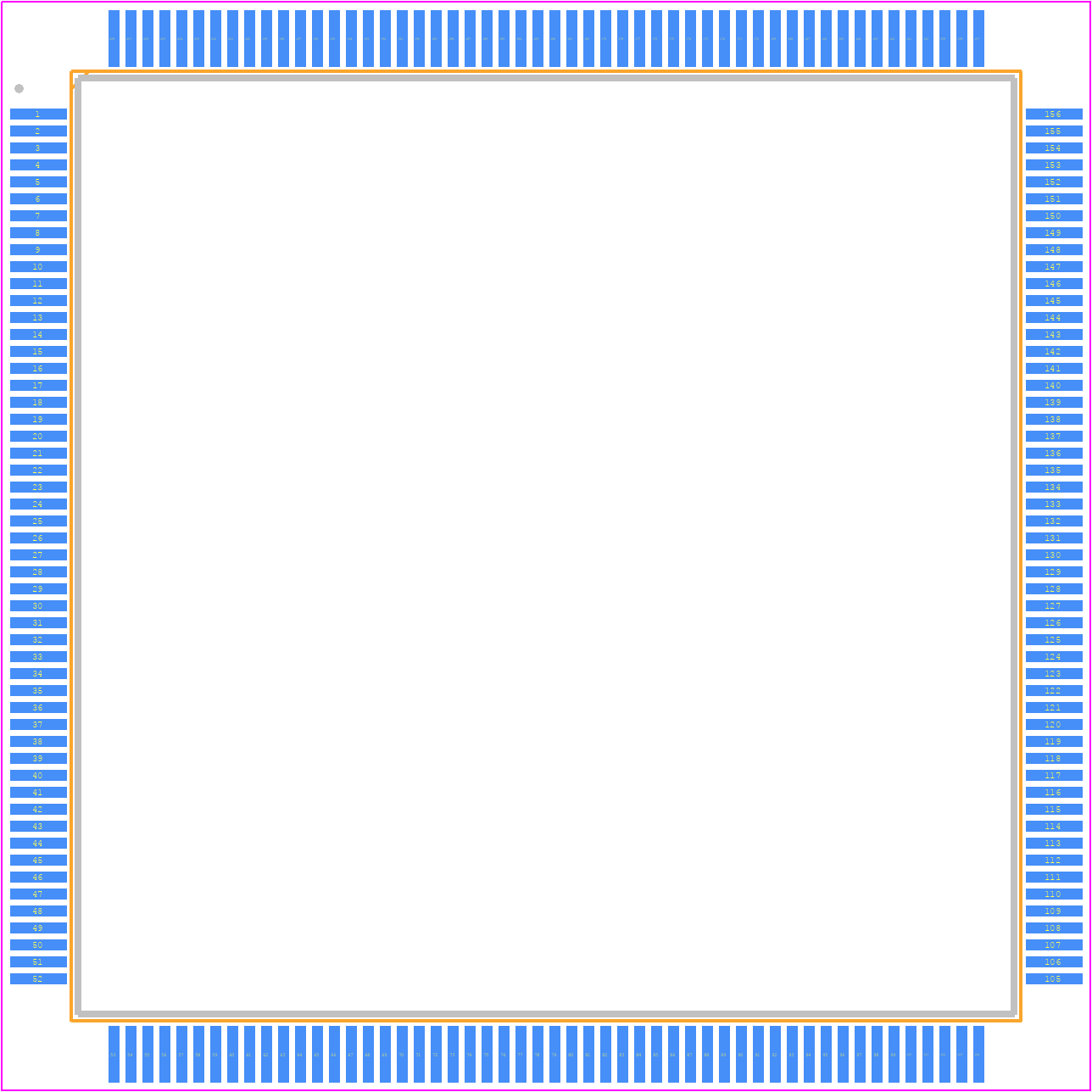

• Part Package Code:

  QFP

• Package Description:

  MS-029FA-1, MQFP-208

• Pin Count:

  208

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Address Bus Width:

  24

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  33.33 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G208

• JESD-609 Code:

  e0

• Length:

  28 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  208

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FQFP

• Package Equivalence Code:

  QFP208,1.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, FINE PITCH

• Peak Reflow Temperature (Cel):

  240

• Qualification Status:

  Not Qualified

• RAM (words):

  16384

• Seated Height-Max:

  4.1 mm

• Supply Current-Max:

  510 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.13 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  28 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
