ADSP-21065LKSZ-240 - Analog Devices

Description: ADSP-21065LKSZ-240, 32bit Digital Signal Processor 60MHz SRAM, 68kb, 208-Pin MQFP

Download ADSP-21065LKSZ-240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21065LKSZ-240 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

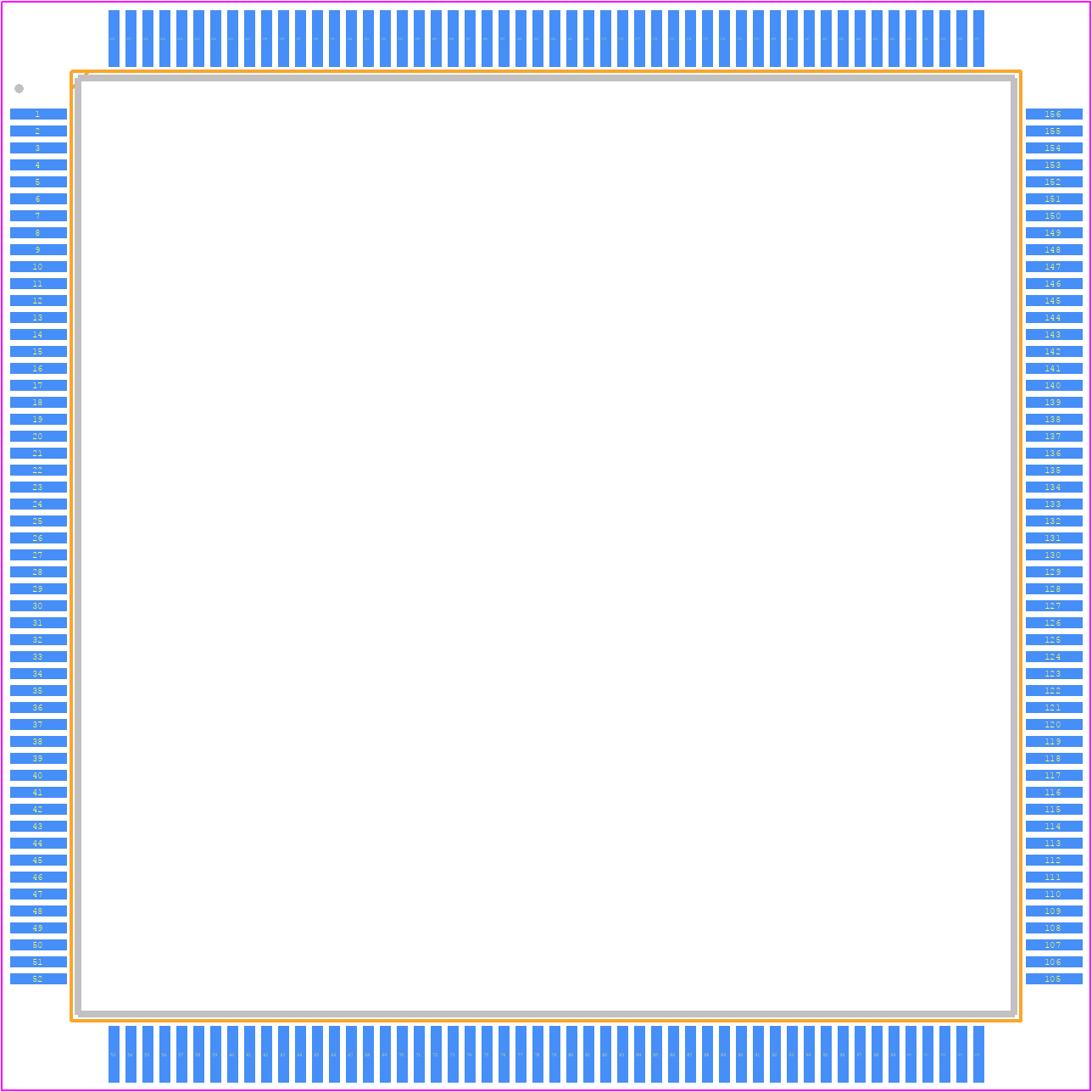

ADSP-21065LKSZ-240 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 208-Lead Metric Quad Flat Package [MQFP] (S-208-2)
click to zoom
3D Models
ADSP-21065LKSZ-240 - Analog Devices - 3D model - Quad Flat Packages - 208-Lead Metric Quad Flat Package [MQFP] (S-208-2)
click to zoom

ADSP-21065LKSZ-240 Details

  • Manufacturer Part Number:

    ADSP-21065LKSZ-240

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    MS-029FA-1, MQFP-208

  • Pin Count:

    208

  • Manufacturer Package Code:

    S-208-2

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    30 MHz

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    17408

  • Seated Height-Max:

    4.1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21065LKSZ-240 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and prevents damage to the device.
  • Optimizing performance involves understanding the application's requirements, using the correct compiler optimizations, and leveraging the processor's features such as DMA, cache, and instruction-level parallelism. Consult the ADSP-21065LKSZ-240 manual and Analog Devices' application notes for guidance.
  • The ADSP-21065LKSZ-240 has a maximum junction temperature of 150°C. Ensure proper heat sinking, airflow, and thermal interface material to maintain a safe operating temperature. Consult the datasheet and thermal management guidelines for more information.
  • Follow proper PCB design practices, use shielding, and ensure proper grounding and decoupling to minimize electromagnetic interference (EMI). Consult the ADSP-21065LKSZ-240 manual and EMC guidelines for more information.
  • The ADSP-21065LKSZ-240 is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic packaging to protect the device. Consult the datasheet and environmental testing guidelines for more information.
