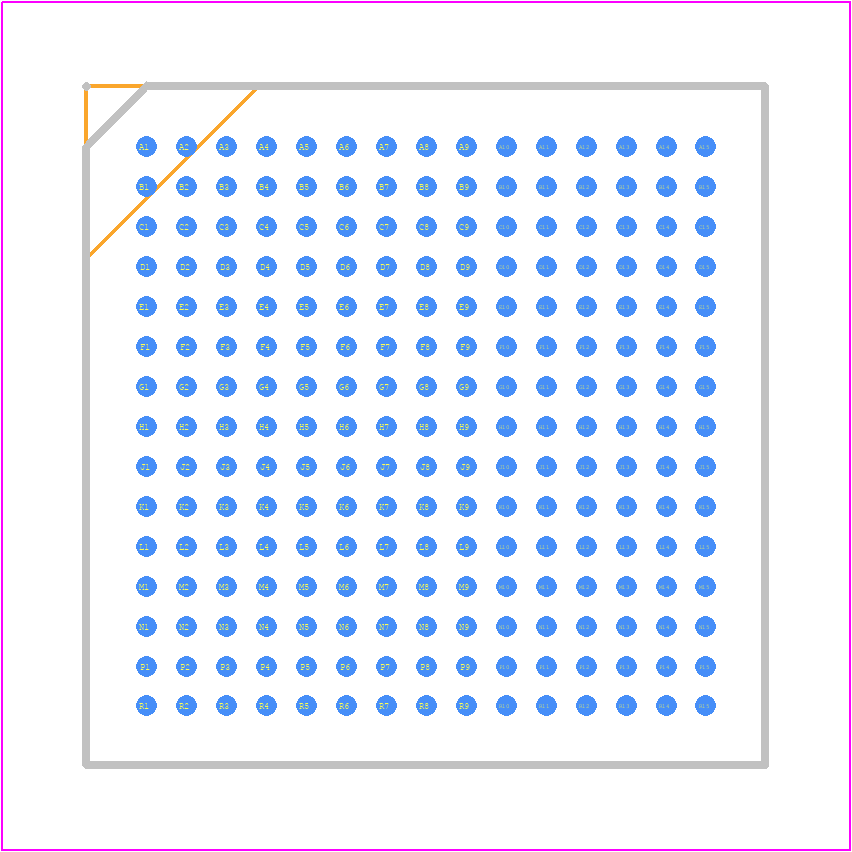

ADSP-21161NKCAZ100 - Analog Devices PCB footprint - BGA - BGA - 225-Ball CSP_BGA (BC-225-1)
click to zoom
3D Models
ADSP-21161NKCAZ100 - Analog Devices - 3D model - BGA - 225-Ball CSP_BGA (BC-225-1)
click to zoom

ADSP-21161NKCAZ100 Details

  • Manufacturer Part Number:

    ADSP-21161NKCAZ100

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    BGA

  • Package Description:

    17 X 17 MM, ROHS COMPLIANT, MO-192AAF-2, BGA-225

  • Pin Count:

    225

  • Manufacturer Package Code:

    BC-225-1

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    27.5 MHz

  • External Data Bus Width:

    48

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B225

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    225

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA225,15X15,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    32768

  • Seated Height-Max:

    1.85 mm

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER
