ADSP-21369KBPZ-2A - Analog Devices

ADSP-21369KBPZ-2A Details

• Manufacturer Part Number:

  ADSP-21369KBPZ-2A

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

• Package Description:

  BGA-256

• Pin Count:

  256

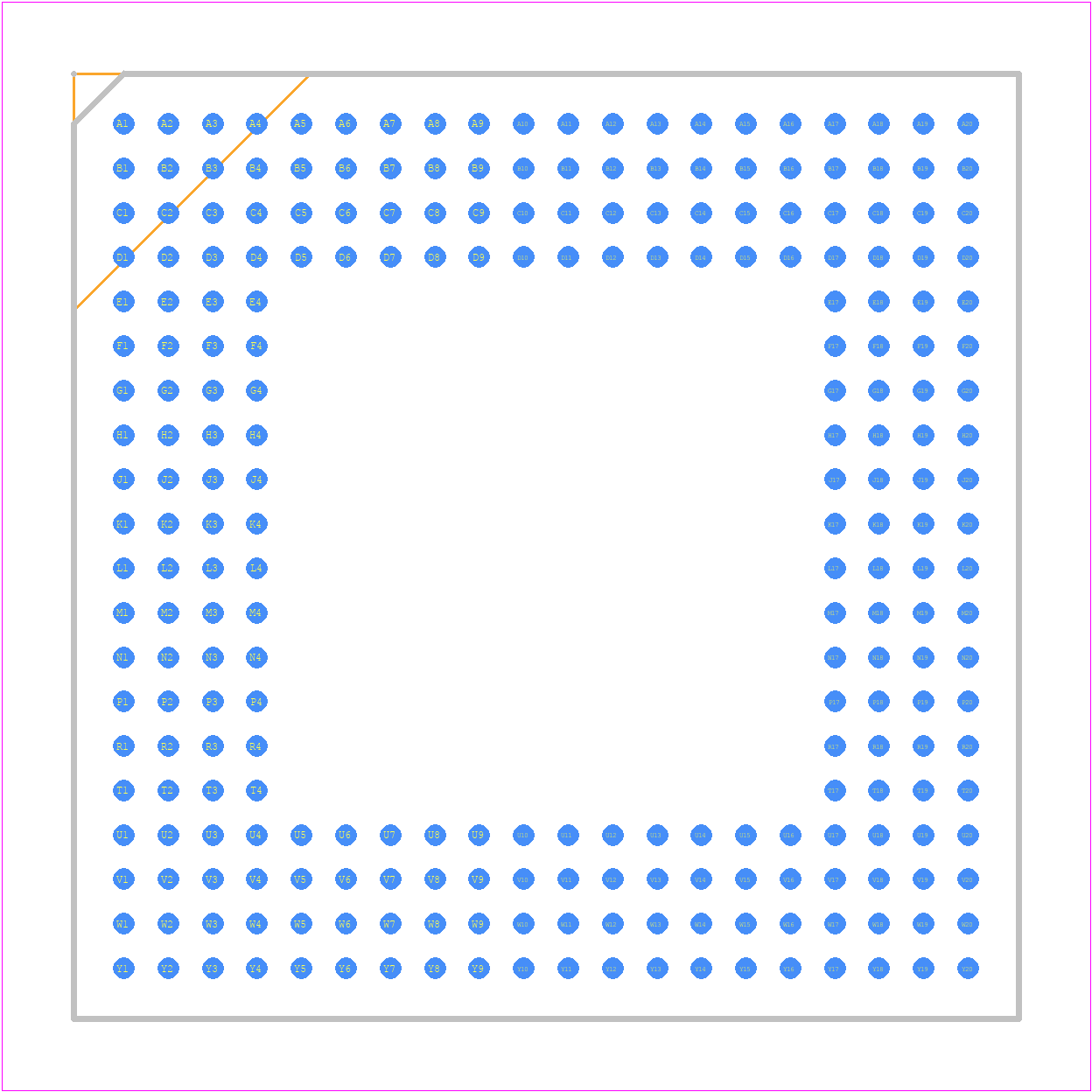

• Manufacturer Package Code:

  BP-256-2

• Country Of Origin:

  Philippines

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Additional Feature:

  ALSO REQUIRES 3.3V SUPPLY

• Address Bus Width:

  24

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  55.56 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B256

• JESD-609 Code:

  e1

• Length:

  27 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  256

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LBGA

• Package Equivalence Code:

  BGA256,20X20,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  65536

• Seated Height-Max:

  1.7 mm

• Supply Voltage-Max:

  1.26 V

• Supply Voltage-Min:

  1.14 V

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  27 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
