ADSP-21371KSWZ-2B footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

PCB Footprints

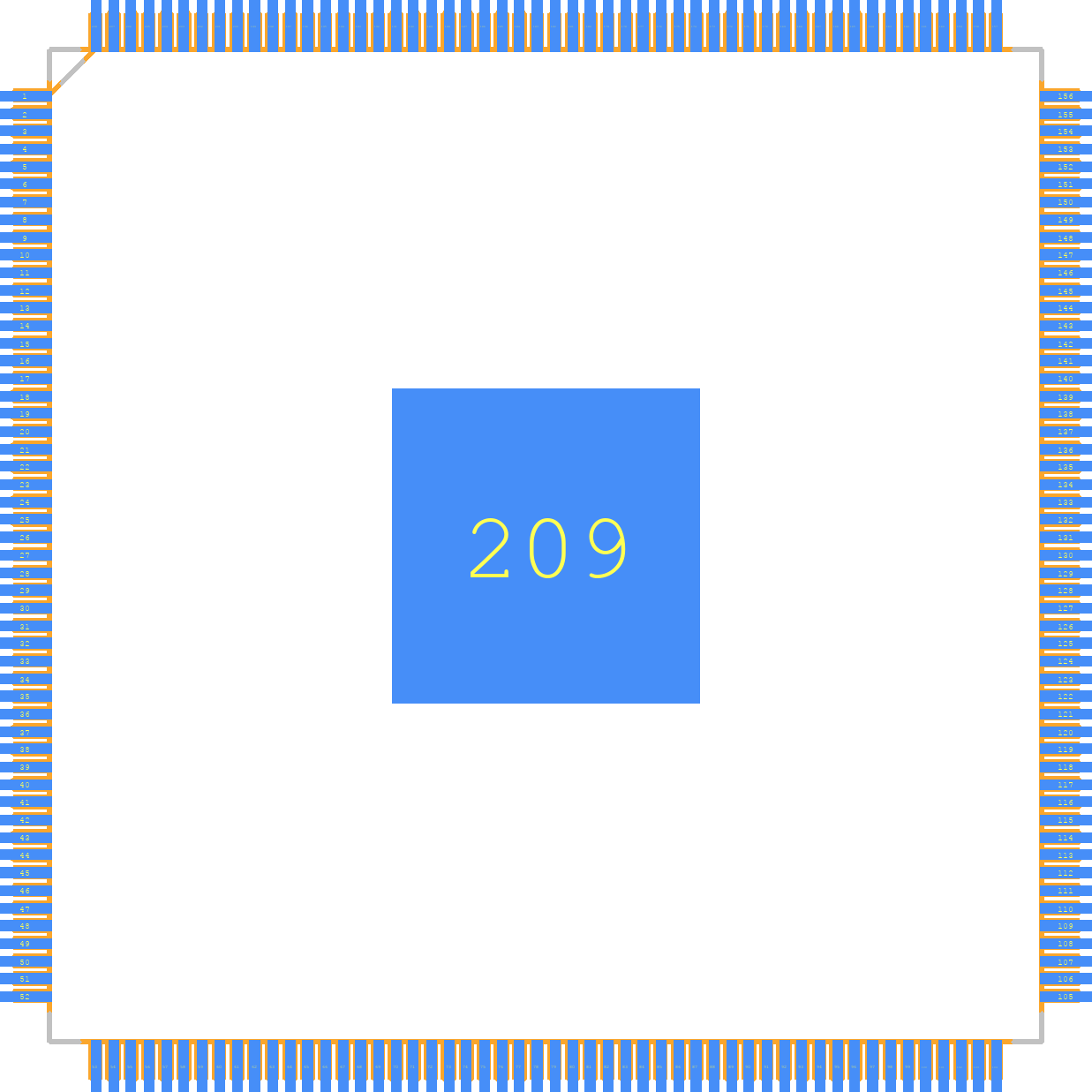

ADSP-21371KSWZ-2B - Analog Devices PCB footprint - Other - Other - QFP50P3000X3000X160-209N

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADSP-21371KSWZ-2B
Part Number ADSP-21371KSWZ-2B
Manufacturer Analog Devices
Pin Count 209
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - QFP50P3000X3000X160-209N
Released Date Jan 10, 2017
Last Modified Date Nov 15, 2024 1:35 PM UTC
Pinout / Pin List Click Here (Member Only)

ADSP-21371KSWZ-2B Details

Manufacturer Part Number:
ADSP-21371KSWZ-2B
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
QFP
Package Description:
ROHS COMPLIANT, MS-026BJB-HD, LQFP-208
Pin Count:
208
Manufacturer Package Code:
SW-208-2
Country Of Origin:
Mainland China
ECCN Code:
3A991.A.2
HTS Code:
8542.31.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Address Bus Width:
24
Barrel Shifter:
YES
Bit Size:
32
Boundary Scan:
YES
Clock Frequency-Max:
16.67 MHz
External Data Bus Width:
32
Format:
FLOATING POINT
Internal Bus Architecture:
MULTIPLE
JESD-30 Code:
S-PQFP-G208
JESD-609 Code:
e3
Length:
28 mm
Low Power Mode:
NO
Moisture Sensitivity Level:
3
Number of Terminals:
208
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HLFQFP
Package Equivalence Code:
QFP208,1.2SQ,20
Package Shape:
SQUARE
Package Style:
FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
RAM (words):
32768
Seated Height-Max:
1.6 mm
Supply Voltage-Max:
1.26 V
Supply Voltage-Min:
1.14 V
Supply Voltage-Nom:
1.2 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
28 mm
uPs/uCs/Peripheral ICs Type:
DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21371KSWZ-2B Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and minimizes the risk of latch-up.
Optimizing performance involves understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache and DMA, and optimizing the memory hierarchy. Consult the ADSP-21371KSWZ-2B's software development kit (SDK) and application notes for guidance.
The ADSP-21371KSWZ-2B has a maximum junction temperature of 125°C. Ensure proper heat sinking, thermal interface material, and airflow to maintain a safe operating temperature. Consult the datasheet and thermal management application notes for more information.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-21371KSWZ-2B's EMC application notes and relevant industry standards (e.g., IEC 61000-4-2) for guidance.
When using the ADSP-21371KSWZ-2B in a harsh environment, consider the operating temperature range, humidity, and vibration. Ensure the processor is properly packaged and sealed, and that the system is designed to withstand the environmental stresses. Consult the datasheet and relevant industry standards (e.g., IEC 60068-2-1) for guidance.

Trust Checks

System Verified

ADSP-21371KSWZ-2B Overview

Use the download button to access the ADSP-21371KSWZ-2B schematic symbol and PCB footprint.
