ADSP-21375BSWZ-2B - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 266 MHz.Proc Blank rom EPAD PBfree LQFP

Download ADSP-21375BSWZ-2B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21375BSWZ-2B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

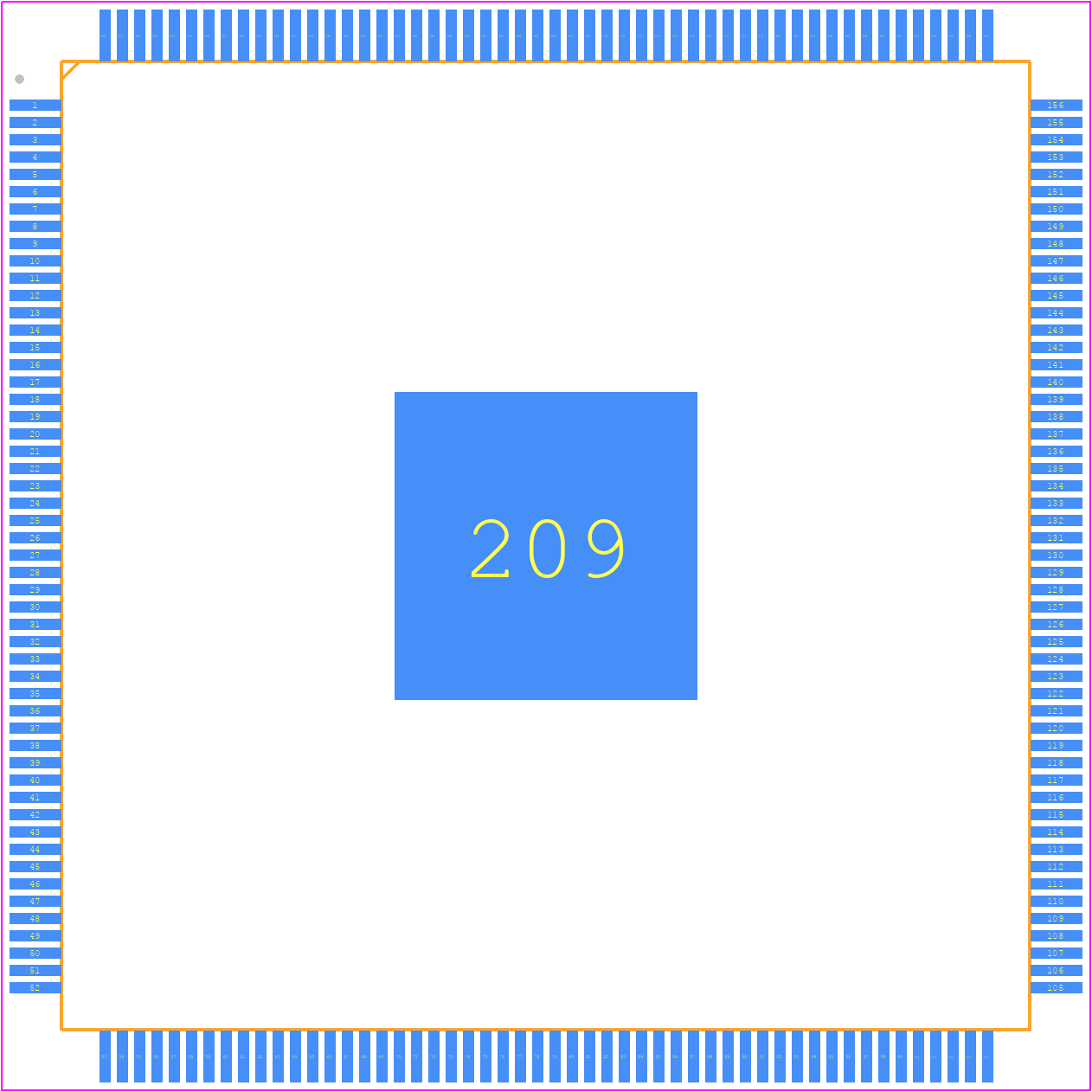

ADSP-21375BSWZ-2B - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 208-Lead Low Profile Quad Flat Package, Exposed Pad [LQFP_EP] (SW-208-1)
click to zoom
3D Models
ADSP-21375BSWZ-2B - Analog Devices - 3D model - Quad Flat Packages - 208-Lead Low Profile Quad Flat Package, Exposed Pad [LQFP_EP] (SW-208-1)
click to zoom

ADSP-21375BSWZ-2B Details

  • Manufacturer Part Number:

    ADSP-21375BSWZ-2B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026BJB-HD, LQFP-208

  • Pin Count:

    208

  • Manufacturer Package Code:

    SW-208-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    16.67 MHz

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    16384

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21375BSWZ-2B Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADSP-21375 Hardware Reference Manual, which includes guidelines for component placement, thermal vias, and heat sink design.
  • Analog Devices provides a power estimation tool and guidelines for power optimization in the ADSP-21375 Power Estimation and Optimization Guide, which includes tips for reducing power consumption, such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
  • The recommended settings for the PLL and clocking system can be found in the ADSP-21375 Hardware Reference Manual, which includes guidelines for configuring the PLL, clock domains, and clock frequencies for optimal performance and power consumption.
  • Analog Devices provides guidelines for implementing and optimizing the cache and memory hierarchy in the ADSP-21375 Cache and Memory Hierarchy Guide, which includes tips for configuring the cache, data and program memory, and optimizing memory access patterns.
  • The limitations and considerations for using the ADSP-21375BSWZ-2B's peripherals can be found in the ADSP-21375 Peripheral Reference Manual, which includes guidelines for configuring and using the peripherals, as well as any limitations and restrictions on their use.
