ADSP-21375KSWZ-2B - Analog Devices

Description: Analog Devices ADSP-21375KSWZ-2B, 32bit SHARC Digital Signal Processor 800MHz 2 Mbit ROM 208-Pin LQFP

Download ADSP-21375KSWZ-2B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21375KSWZ-2B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

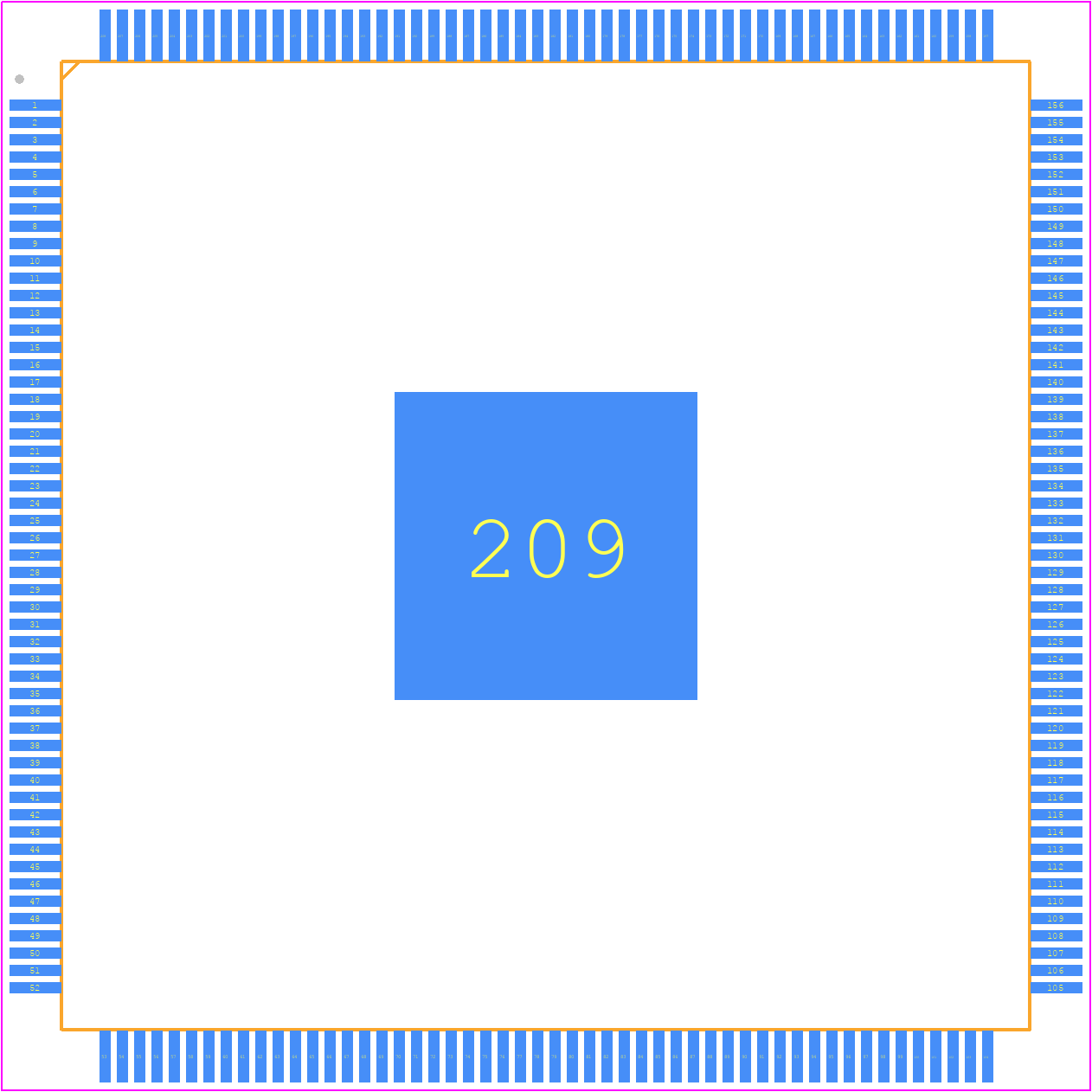

ADSP-21375KSWZ-2B - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 208-Lead Low Profile Quad Flat Package, Exposed Pad [LQFP_EP] (SW-208-1)
click to zoom
3D Models
ADSP-21375KSWZ-2B - Analog Devices - 3D model - Quad Flat Packages - 208-Lead Low Profile Quad Flat Package, Exposed Pad [LQFP_EP] (SW-208-1)
click to zoom

ADSP-21375KSWZ-2B Details

  • Manufacturer Part Number:

    ADSP-21375KSWZ-2B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, MS-026BJB-HD, LQFP-208

  • Pin Count:

    208

  • Manufacturer Package Code:

    SW-208-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    16.67 MHz

  • External Data Bus Width:

    32

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G208

  • JESD-609 Code:

    e3

  • Length:

    28 mm

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP208,1.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (words):

    16384

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    28 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21375KSWZ-2B Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and minimizes the risk of latch-up.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes setting the clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-21375KSWZ-2B's software development kit (SDK) and application notes for guidance.
  • The ADSP-21375KSWZ-2B has a maximum junction temperature of 125°C. Ensure proper heat sinking, thermal interface material, and airflow to maintain a safe operating temperature. Consult the datasheet and thermal management application notes for more information.
  • Follow proper PCB design and layout guidelines, use shielding and filtering, and ensure proper grounding and decoupling to minimize electromagnetic interference (EMI). Consult the ADSP-21375KSWZ-2B's EMC application notes and relevant industry standards.
  • The ADSP-21375KSWZ-2B is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic packaging. Ensure the system is designed to withstand mechanical stress, humidity, and other environmental factors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21375KSWZ-2B Overview

Use the download button to access the ADSP-21375KSWZ-2B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
