ADSP-21469BBC-3 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC High Perf 4th Generation

Download ADSP-21469BBC-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21469BBC-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

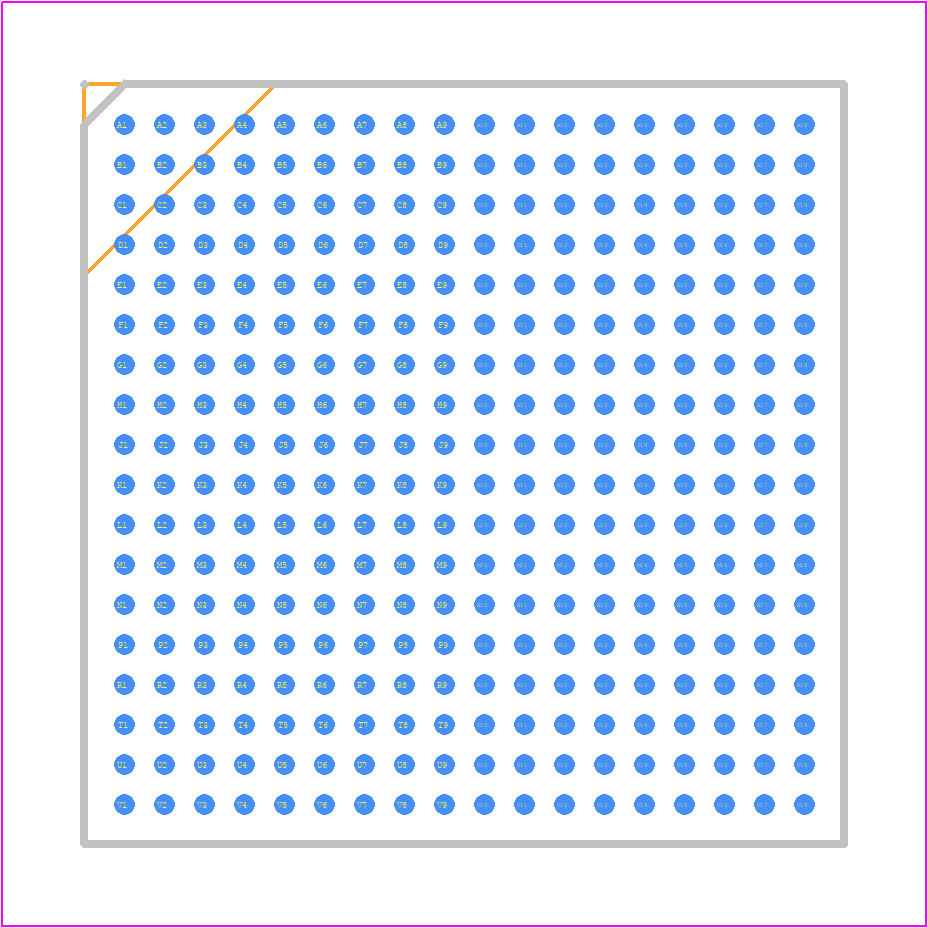

ADSP-21469BBC-3 - Analog Devices PCB footprint - BGA - BGA - BC-324-1-1
click to zoom
3D Models
ADSP-21469BBC-3 - Analog Devices - 3D model - BGA - BC-324-1-1
click to zoom

ADSP-21469BBC-3 Details

  • Manufacturer Part Number:

    ADSP-21469BBC-3

  • Source Url Status Check Date:

    2013-05-01 14:56:48.65

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    19 X 19 MM , MO-192-AAG-1, CSPBGA-324

  • Pin Count:

    324

  • Manufacturer Package Code:

    BC-324-1

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    24

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    25 MHz

  • External Data Bus Width:

    8

  • Format:

    FLOATING POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    19 mm

  • Low Power Mode:

    NO

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA324,18X18,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • RAM (words):

    163840

  • Seated Height-Max:

    1.8 mm

  • Supply Current-Max:

    10 mA

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.05 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, MIXED

ADSP-21469BBC-3 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and minimizes the risk of latch-up.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes setting the clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-21469BBC-3's software development kit (SDK) and application notes for guidance.
  • The ADSP-21469BBC-3 has a maximum junction temperature of 125°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-21469BBC-3's EMC application notes and relevant industry standards.
  • The ADSP-21469BBC-3 is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic sealing to protect the device. Consult the datasheet and relevant industry standards for more information.
