ADSP-21563KSWZ8 - Analog Devices

Description: Up to 800MHz SHARC+ DSP with 640KB L1, 512KB Shared L2 SRAM, 120-lead LQFP_EP

Download ADSP-21563KSWZ8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21563KSWZ8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

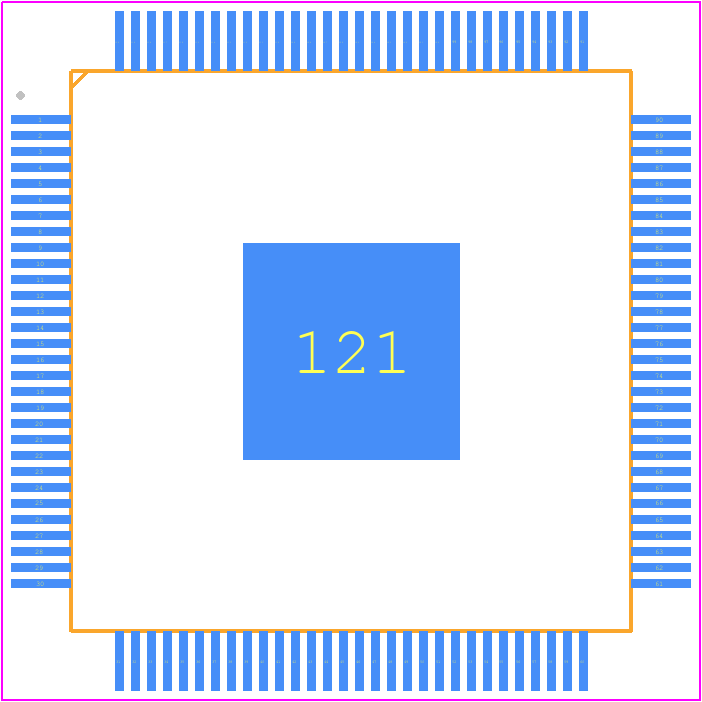

ADSP-21563KSWZ8 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2023
click to zoom
3D Models
ADSP-21563KSWZ8 - Analog Devices - 3D model - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2023
click to zoom

ADSP-21563KSWZ8 Details

  • Manufacturer Part Number:

    ADSP-21563KSWZ8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-120

  • Pin Count:

    120

  • Manufacturer Package Code:

    SW-120-4

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    120

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    163840

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21563KSWZ8 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADSP-21563KSWZ8 Hardware Reference Manual. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • Analog Devices provides a power estimation tool and guidelines in the ADSP-21563KSWZ8 datasheet and hardware reference manual. Additionally, optimizing clock frequencies, using power-saving modes, and minimizing peripheral usage can help reduce power consumption.
  • Use the VisualDSP++ development environment and its built-in debugging tools, such as the debugger and logic analyzer. Also, implement robust error handling and logging mechanisms in your code to facilitate troubleshooting.
  • Follow the guidelines in the ADSP-21563KSWZ8 datasheet and hardware reference manual for PCB layout, shielding, and filtering. Additionally, perform EMC and EMI testing to ensure compliance with relevant standards and regulations.
  • The ADSP-21563KSWZ8 is rated for operation up to 125°C. However, high temperatures can affect performance, power consumption, and reliability. Ensure proper thermal management, and consider derating the device's performance and power consumption at high temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21563KSWZ8 Overview

Use the download button to access the ADSP-21563KSWZ8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors
