ADSP-21565BSWZ10 - Analog Devices

Description: Up to 1GHz SHARC+ DSP with 640KB L1, 1024KB Shared L2 SRAM, 120-lead LQFP_EP

Download ADSP-21565BSWZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21565BSWZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

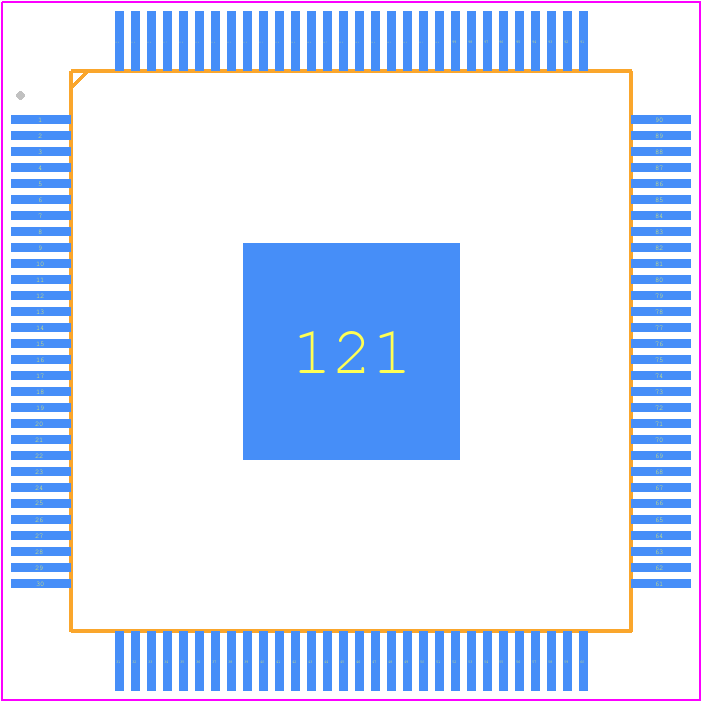

ADSP-21565BSWZ10 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2023-4
click to zoom
3D Models
ADSP-21565BSWZ10 - Analog Devices - 3D model - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2023-4
click to zoom

ADSP-21565BSWZ10 Details

  • Manufacturer Part Number:

    ADSP-21565BSWZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-120

  • Pin Count:

    120

  • Manufacturer Package Code:

    SW-120-4

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    120

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • RAM (words):

    163840

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21565BSWZ10 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDDR. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache, and optimizing memory access patterns. Consult the ADSP-21565BSWZ10's software development kit (SDK) and application notes for guidance.
  • The ADSP-21565BSWZ10 has a maximum junction temperature (TJ) of 125°C. Ensure proper heat sinking, airflow, and thermal interface material to maintain a safe operating temperature. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-21565BSWZ10's EMC application notes and relevant industry standards (e.g., IEC 61000-4-x) for guidance.
  • In harsh environments, consider the processor's operating temperature range, humidity, and vibration tolerance. Ensure proper sealing, conformal coating, and protection from moisture and contaminants. Consult the datasheet and relevant industry standards (e.g., IEC 60068-2-x) for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21565BSWZ10 Overview

Use the download button to access the ADSP-21565BSWZ10 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
