ADSP-21565KSWZ8 - Analog Devices

Description: Up to 1GHz SHARC+ DSP with 640KB L1, 1024KB Shared L2 SRAM, 120-lead LQFP_EP

Download ADSP-21565KSWZ8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21565KSWZ8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

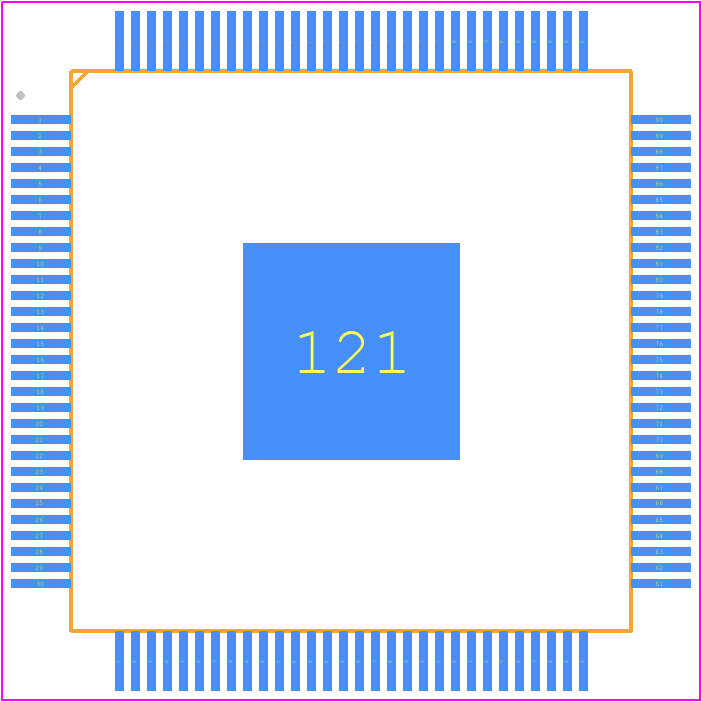

ADSP-21565KSWZ8 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2023-2
click to zoom
3D Models
ADSP-21565KSWZ8 - Analog Devices - 3D model - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD_2023-2
click to zoom

ADSP-21565KSWZ8 Details

  • Manufacturer Part Number:

    ADSP-21565KSWZ8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-120

  • Pin Count:

    120

  • Manufacturer Package Code:

    SW-120-4

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    120

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    32

  • Operating Temperature-Max:

    110 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    163840

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21565KSWZ8 Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-21565KSWZ8 Hardware Reference Manual. Additionally, it's recommended to follow the thermal management guidelines in the datasheet, including using a heat sink and thermal interface material to ensure reliable operation.
  • Analog Devices provides a range of software development tools, including the CrossCore Embedded Studio and the ADSP-21565KSWZ8 EZ-KIT, which can help optimize performance for specific applications. Additionally, engineers can consult the ADSP-21565KSWZ8 Processor Programming Reference Manual and the ADSP-21565KSWZ8 Hardware Reference Manual for guidance on optimizing performance.
  • The ADSP-21565KSWZ8's FPU is a single-precision FPU, which means it may not provide the same level of precision as a double-precision FPU. Additionally, the FPU may have limitations in terms of supported operations and data types. Engineers should consult the ADSP-21565KSWZ8 Processor Programming Reference Manual for more information on the FPU's capabilities and limitations.
  • Analog Devices provides a range of booting and firmware update options for the ADSP-21565KSWZ8, including booting from flash memory, serial booting, and firmware update via the ICE-1000/2000 emulator. Engineers should consult the ADSP-21565KSWZ8 Hardware Reference Manual and the ADSP-21565KSWZ8 Booting and Firmware Update Guide for more information on reliable booting and firmware updates.
  • The power consumption and thermal characteristics of the ADSP-21565KSWZ8 are dependent on the specific application and operating conditions. Engineers should consult the ADSP-21565KSWZ8 datasheet and the ADSP-21565KSWZ8 Hardware Reference Manual for more information on power consumption and thermal characteristics. Additionally, Analog Devices provides a range of power estimation and thermal analysis tools to help engineers optimize their designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21565KSWZ8 Overview

Use the download button to access the ADSP-21565KSWZ8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
