ADSP-21567KBCZ6 - Analog Devices

Description: Up to 800MHz SHARC+ DSP with 640KB L1, 512KB Shared L2 SRAM, 400-Ball CSP_BGA

Download ADSP-21567KBCZ6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21567KBCZ6 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

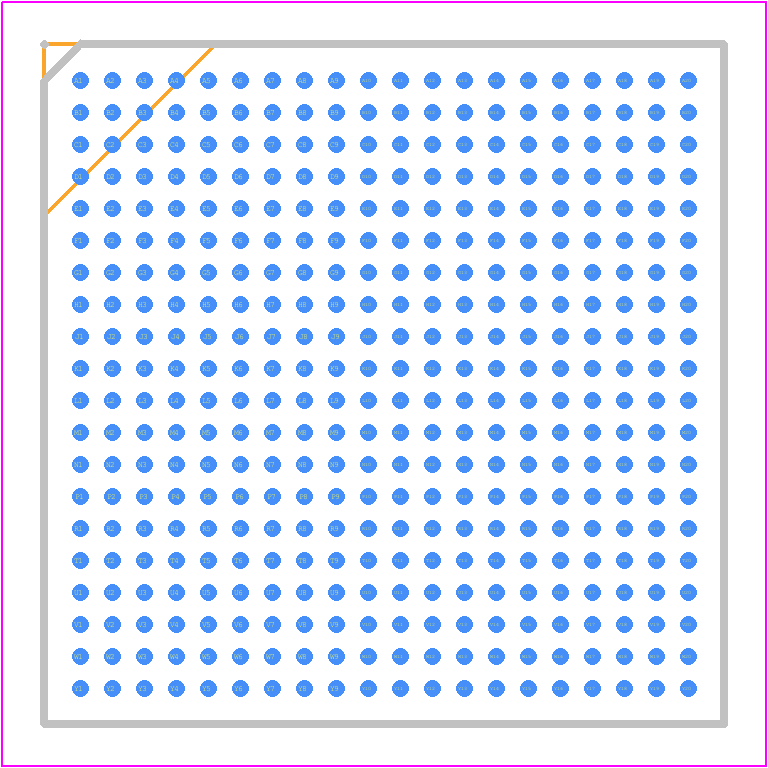

ADSP-21567KBCZ6 - Analog Devices PCB footprint - BGA - BGA - 400-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-400-3)-1
click to zoom
3D Models
ADSP-21567KBCZ6 - Analog Devices - 3D model - BGA - 400-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-400-3)-1
click to zoom

ADSP-21567KBCZ6 Details

  • Manufacturer Part Number:

    ADSP-21567KBCZ6

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    BC-400-3

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    400

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    32

  • Operating Temperature-Max:

    110 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    163840

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.38 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21567KBCZ6 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC first, followed by VDDDSP and VDDIO. This ensures that the internal voltage regulators are powered up correctly.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes setting the clock frequency, cache settings, and optimizing code for the specific use case. Consult the ADSP-21567KBCZ6 Software Development Kit (SDK) and Analog Devices' documentation for guidance.
  • The maximum operating temperature range for the ADSP-21567KBCZ6 is -40°C to +105°C. However, it's essential to ensure that the device is operated within the recommended temperature range to maintain reliability and performance.
  • The ADSP-21567KBCZ6 has various low-power modes, including idle, sleep, and hibernate modes. These modes can be implemented using the processor's power management registers and by configuring the clock domains. Consult the datasheet and SDK documentation for more information.
  • The maximum clock frequency supported by the ADSP-21567KBCZ6 is 1.2 GHz. However, the actual clock frequency may vary depending on the specific application and operating conditions.
