ADSP-21569KBCZ10 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC DSP,DSC 1000MHz SHARC W DDR

Download ADSP-21569KBCZ10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21569KBCZ10 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

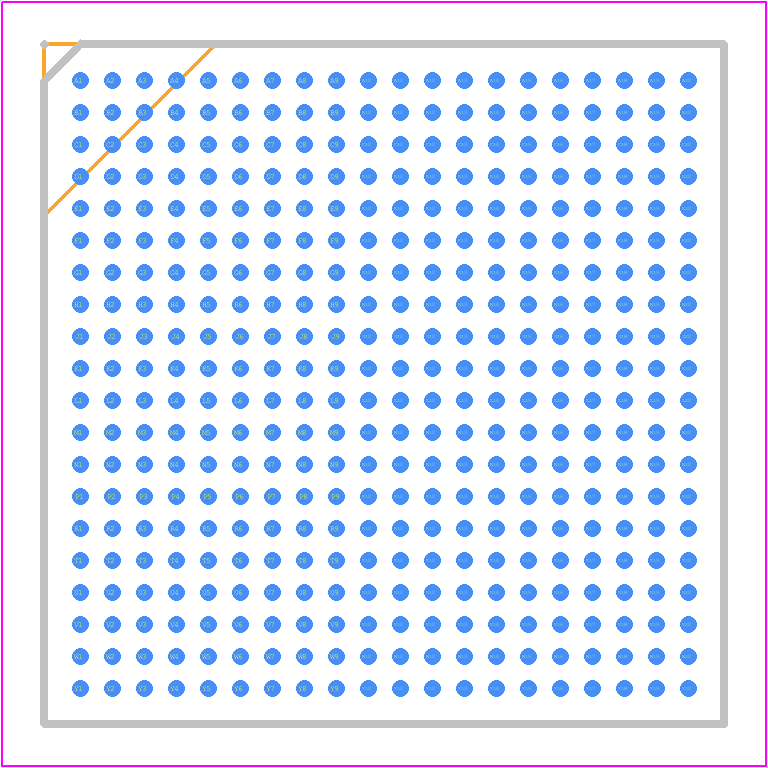

ADSP-21569KBCZ10 - Analog Devices PCB footprint - BGA - BGA - (BC-400-3) -2
click to zoom
3D Models
ADSP-21569KBCZ10 - Analog Devices - 3D model - BGA - (BC-400-3) -2
click to zoom

ADSP-21569KBCZ10 Details

  • Manufacturer Part Number:

    ADSP-21569KBCZ10

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    BC-400-3

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    400

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    32

  • Operating Temperature-Max:

    110 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    163840

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.38 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21569KBCZ10 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDDR. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes setting the clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-21569KBCZ10's software development kit (SDK) and application notes for guidance.
  • The ADSP-21569KBCZ10 has a maximum junction temperature of 125°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-21569KBCZ10's EMC application notes and relevant industry standards (e.g., IEC 61000-4-2) for guidance.
  • The ADSP-21569KBCZ10 is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic packaging to protect the device. Consult the datasheet and relevant industry standards (e.g., IEC 60068-2-14) for guidance.
