ADSP-21571KSWZ-5 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 500 MHz 2x SHARC, LQFP Package

Download ADSP-21571KSWZ-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21571KSWZ-5 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

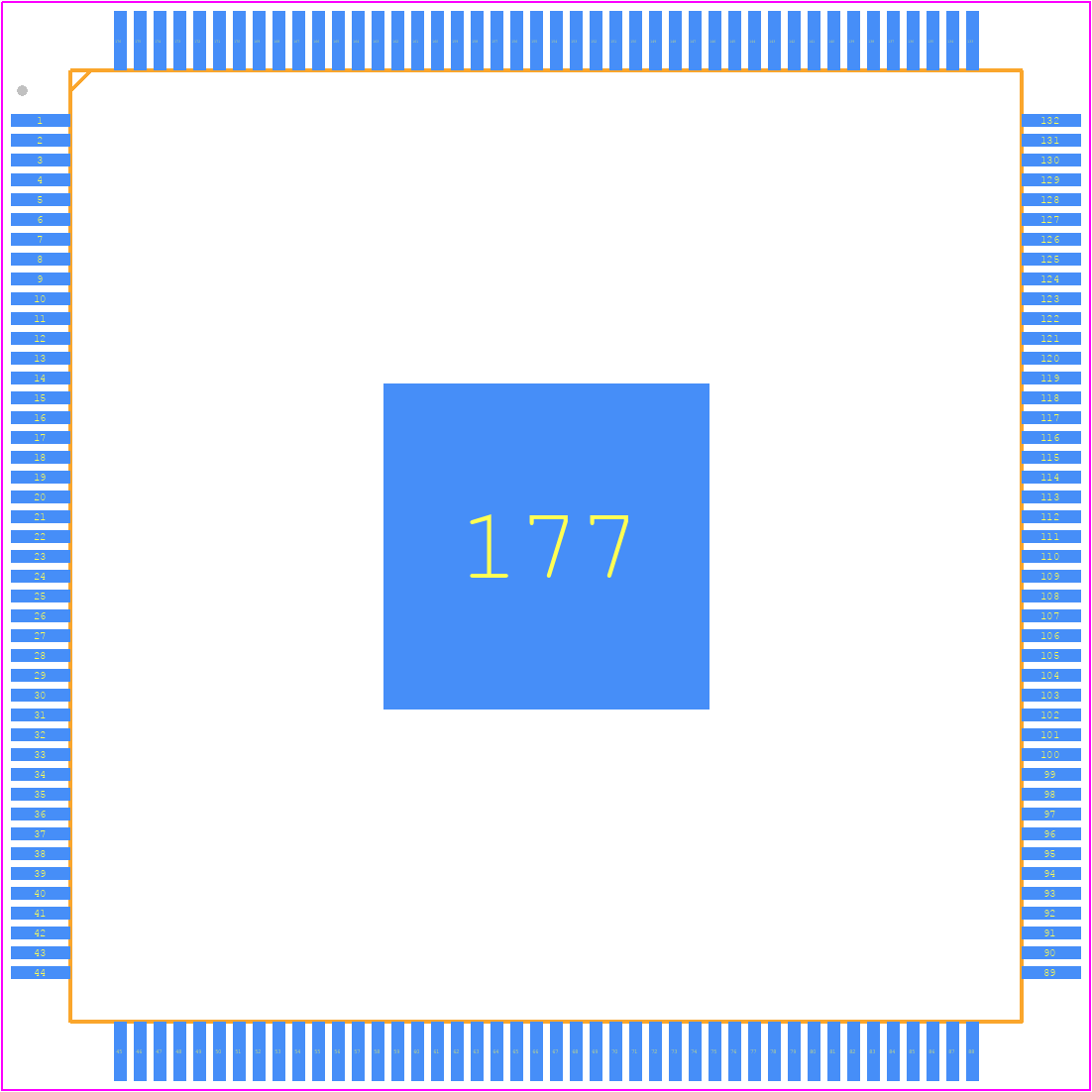

ADSP-21571KSWZ-5 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SYNC/FREQ
click to zoom
3D Models
ADSP-21571KSWZ-5 - Analog Devices - 3D model - Quad Flat Packages - SYNC/FREQ
click to zoom

ADSP-21571KSWZ-5 Details

  • Manufacturer Part Number:

    ADSP-21571KSWZ-5

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    176

  • Manufacturer Package Code:

    SW-176-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2018-02-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    33 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G176

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21571KSWZ-5 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADSP-2157x Hardware Reference Manual, which includes guidelines for thermal vias, heat sinks, and PCB stack-up. Additionally, the company offers a thermal modeling tool to help designers optimize their board design.
  • Analog Devices provides a range of tools and resources to help optimize the performance of the ADSP-21571KSWZ-5, including the ADSP-2157x Processor Manual, the VisualDSP++ development environment, and the CrossCore Embedded Studio. These resources provide guidance on optimizing code, managing memory, and using peripherals.
  • The ADSP-21571KSWZ-5 has an industrial temperature range of -40°C to +85°C, but it can be extended to -55°C to +125°C with proper thermal management and design considerations.
  • Analog Devices provides guidelines for EMC design and testing in the ADSP-2157x Hardware Reference Manual, including recommendations for PCB layout, shielding, and filtering. Additionally, the company offers EMC testing and certification services to help designers ensure compliance with relevant standards.
  • The power consumption of the ADSP-21571KSWZ-5 varies depending on the operating frequency, voltage, and application. Analog Devices provides power consumption estimates in the ADSP-2157x Datasheet, and designers can use the Power Monitor tool in the VisualDSP++ development environment to optimize power consumption in their specific application.
