ADSP-21584CBCZ-4A - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 2xSHARC(no ARM&reduced conn)dualDDR,HPCP

Download ADSP-21584CBCZ-4A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21584CBCZ-4A - Analog Devices - PCB symbol
click to zoom
PCB Footprints

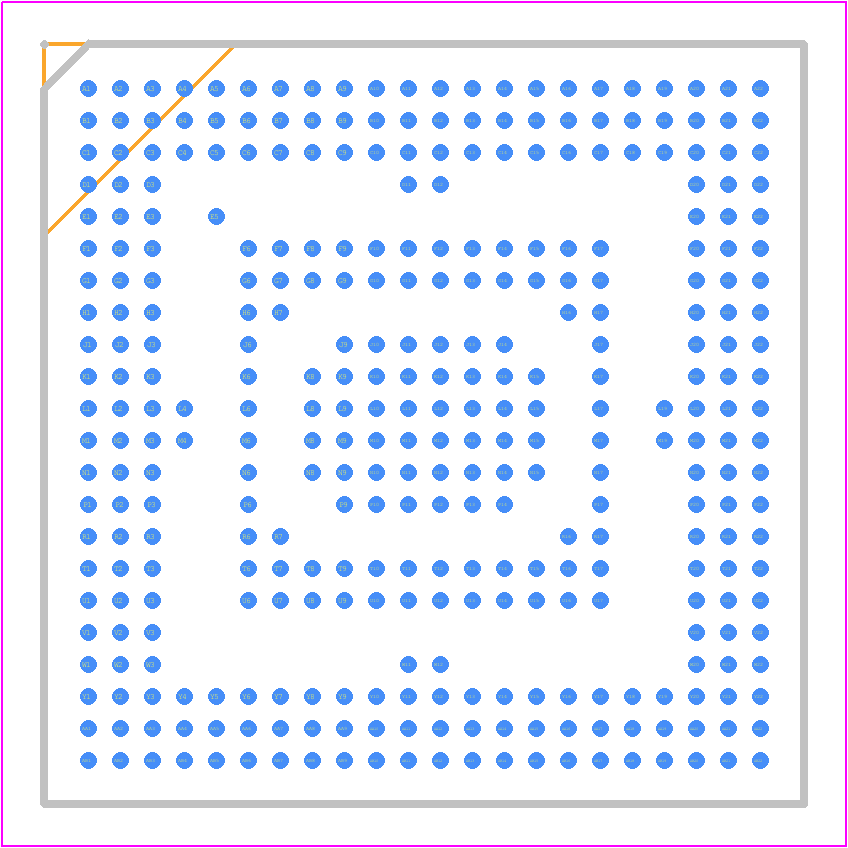

ADSP-21584CBCZ-4A - Analog Devices PCB footprint - BGA - BGA - BC-349-1
click to zoom
3D Models
ADSP-21584CBCZ-4A - Analog Devices - 3D model - BGA - BC-349-1
click to zoom

ADSP-21584CBCZ-4A Details

  • Manufacturer Part Number:

    ADSP-21584CBCZ-4A

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    349

  • Manufacturer Package Code:

    BC-349-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-21584CBCZ-4A Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADSP-21584 Hardware Design Guide (UG-1243) and the ADSP-21584 Thermal Design Guide (UG-1244). These guides provide detailed information on PCB layout, thermal management, and heat sink design to ensure optimal performance and reliability.
  • The ADSP-21584 Power Management Guide (UG-1245) provides detailed information on power consumption optimization techniques, including dynamic voltage and frequency scaling, clock gating, and power domain management. Additionally, Analog Devices offers a Power Estimation Tool (PET) that can help estimate power consumption based on the specific application requirements.
  • The ADSP-21584 Clocking and PLL Guide (UG-1246) provides detailed information on the recommended settings for the PLL and clocking system, including clock frequency selection, PLL configuration, and clock domain management. Additionally, Analog Devices offers a Clocking and PLL Configuration Tool that can help configure the PLL and clocking system for specific application requirements.
  • The ADSP-21584 Booting and Firmware Loading Guide (UG-1247) provides detailed information on reliable booting and firmware loading techniques, including boot mode selection, firmware loading protocols, and error handling mechanisms. Additionally, Analog Devices offers a Bootloader and Firmware Loading Tool that can help simplify the firmware loading process.
  • The ADSP-21584 Testing and Validation Guide (UG-1248) provides detailed information on recommended testing and validation procedures, including device initialization, memory testing, and peripheral testing. Additionally, Analog Devices offers a Testing and Validation Tool that can help automate the testing process and ensure compliance with industry standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21584CBCZ-4A Overview

Use the download button to access the ADSP-21584CBCZ-4A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
