ADSP-21584KBCZ-4A - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 2xSHARC(no ARM&reduced conn)dualDDR,HPCP

Download ADSP-21584KBCZ-4A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21584KBCZ-4A - Analog Devices - PCB symbol
click to zoom
PCB Footprints

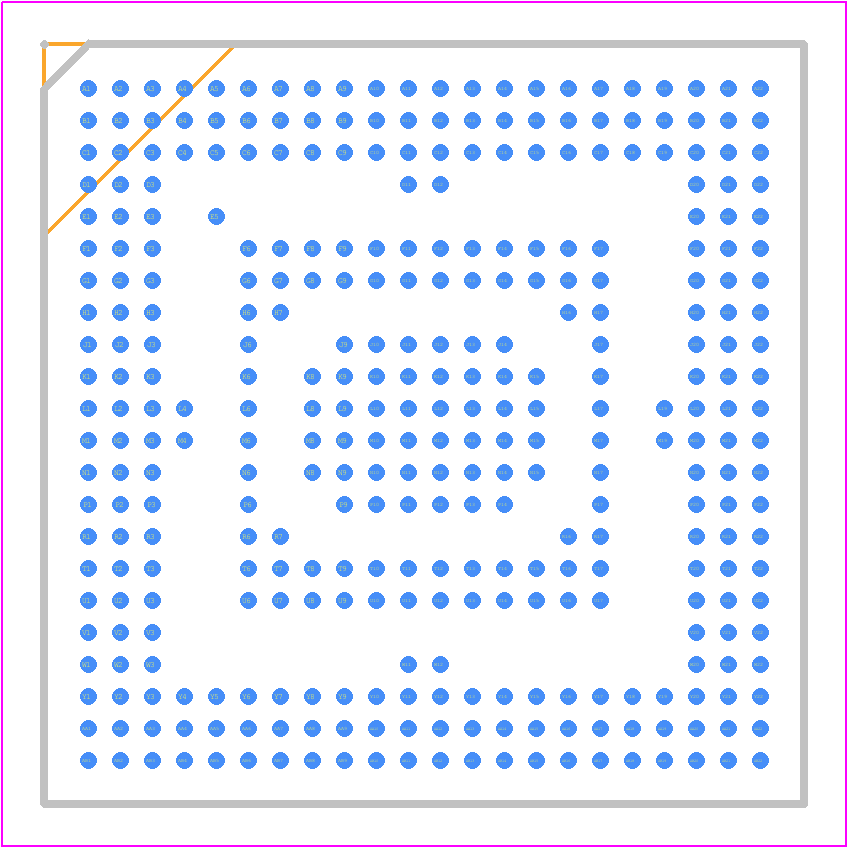

ADSP-21584KBCZ-4A - Analog Devices PCB footprint - BGA - BGA - ADSP(BC-349-1)
click to zoom
3D Models
ADSP-21584KBCZ-4A - Analog Devices - 3D model - BGA - ADSP(BC-349-1)
click to zoom

ADSP-21584KBCZ-4A Details

  • Manufacturer Part Number:

    ADSP-21584KBCZ-4A

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    349

  • Manufacturer Package Code:

    BC-349-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR
