ADSP-21587BBCZ-4B - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 2xSHARC(no ARM&reduced conn)dualDDR,HPCP

Download ADSP-21587BBCZ-4B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21587BBCZ-4B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

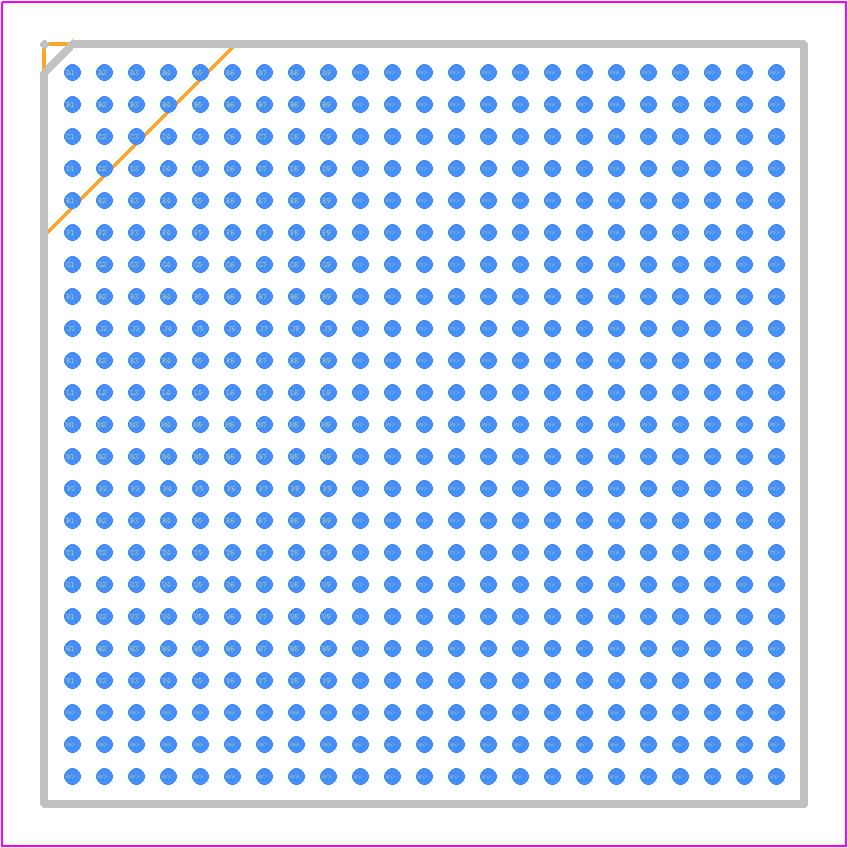

ADSP-21587BBCZ-4B - Analog Devices PCB footprint - BGA - BGA - BC-529-1
click to zoom
3D Models
ADSP-21587BBCZ-4B - Analog Devices - 3D model - BGA - BC-529-1
click to zoom

ADSP-21587BBCZ-4B Details

  • Manufacturer Part Number:

    ADSP-21587BBCZ-4B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-529

  • Pin Count:

    529

  • Manufacturer Package Code:

    BC-529-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B529

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    529

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21587BBCZ-4B Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache and memory hierarchy, and optimizing the code using the processor's features such as SIMD instructions and DMA.
  • The ADSP-21587BBCZ-4B has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate heat sinking, airflow, and thermal management to keep the junction temperature below the maximum rating.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Additionally, ensure that the system meets the relevant EMC standards and regulations.
  • When using the ADSP-21587BBCZ-4B in a harsh environment, consider the operating temperature range, humidity, and vibration. Ensure the system is designed to withstand these conditions, and consider using conformal coating, sealing, or other environmental protection measures as needed.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21587BBCZ-4B Overview

Use the download button to access the ADSP-21587BBCZ-4B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
