ADSP-21587BBCZ-5B - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 2xSHARC(no ARM&reduced conn)dualDDR,HPCP

Download ADSP-21587BBCZ-5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21587BBCZ-5B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

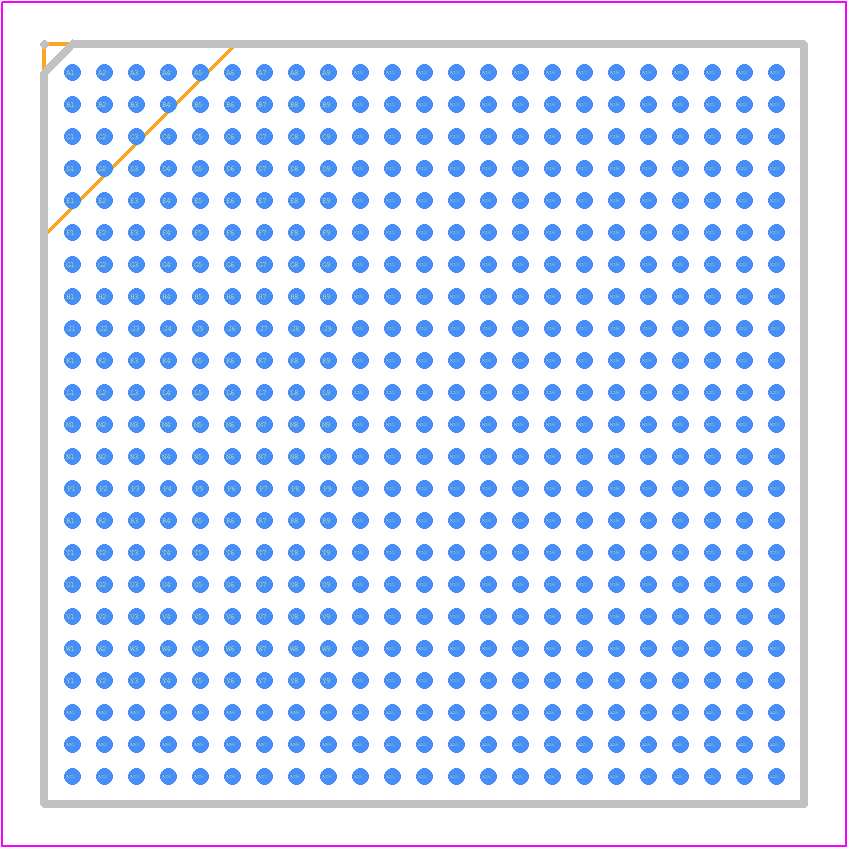

ADSP-21587BBCZ-5B - Analog Devices PCB footprint - BGA - BGA - BC-529-1
click to zoom
3D Models
ADSP-21587BBCZ-5B - Analog Devices - 3D model - BGA - BC-529-1
click to zoom

ADSP-21587BBCZ-5B Details

  • Manufacturer Part Number:

    ADSP-21587BBCZ-5B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-529

  • Pin Count:

    529

  • Manufacturer Package Code:

    BC-529-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    26

  • Barrel Shifter:

    NO

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B529

  • Length:

    19 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    1

  • Number of Terminals:

    529

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (words):

    917504

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21587BBCZ-5B Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADSP-21587BBCZ-5B Hardware Reference Manual, which includes guidelines for component placement, routing, and heat sink design to ensure optimal performance and thermal dissipation.
  • The ADSP-21587BBCZ-5B has various power-saving features such as dynamic voltage and frequency scaling, and idle modes. Engineers can optimize power consumption by adjusting these features, using the processor's power management API, and implementing power-gating techniques in their design.
  • Analog Devices provides a range of debugging tools, including the VisualDSP++ development environment, the ADSP-21587BBCZ-5B emulator, and the ICE-1000/2000 in-circuit emulator. Engineers can also use print statements, debug logs, and oscilloscopes to troubleshoot their design.
  • The ADSP-21587BBCZ-5B has built-in safety and security features such as error correction, secure boot, and tamper detection. Engineers should also implement additional security measures such as encryption, secure communication protocols, and access control mechanisms to ensure the integrity of their design.
  • The ADSP-21587BBCZ-5B is designed for use in multi-core and heterogeneous systems, but engineers should be aware of the limitations and constraints of shared resources, cache coherence, and synchronization mechanisms. They should also consider the impact of core-to-core communication, data consistency, and system-level optimization.
