ADSP-21593KBPZ8 - Analog Devices

Description: Up to 1GHz Dual-SHARC+? DSP with 2x 640KB L1, 2048KB Shared L2 SRAM, 400-Ball FCBGA

Download ADSP-21593KBPZ8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21593KBPZ8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

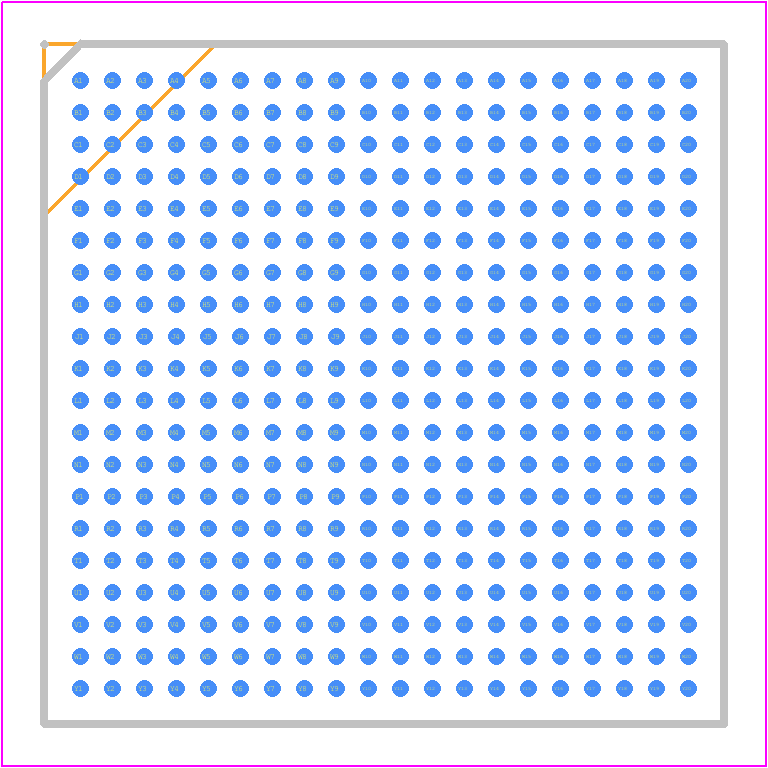

ADSP-21593KBPZ8 - Analog Devices PCB footprint - BGA - BGA - BP-400-3
click to zoom
3D Models
ADSP-21593KBPZ8 - Analog Devices - 3D model - BGA - BP-400-3
click to zoom

ADSP-21593KBPZ8 Details

  • Manufacturer Part Number:

    ADSP-21593KBPZ8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    BP-400-3

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Barrel Shifter:

    YES

  • Bit Size:

    64

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    800 MHz

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    6

  • Number of Terminals:

    400

  • Number of Timers:

    16

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • RAM (words):

    2097152

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1933 mA

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, MIXED

ADSP-21593KBPZ8 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC first, followed by VDDDSP and VDDIO. This ensures that the internal voltage regulators are powered up correctly.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes setting the clock frequency, cache settings, and optimizing code for the specific use case. Analog Devices provides tools and documentation to help with this process.
  • The maximum operating temperature range for the ADSP-21593KBPZ8 is -40°C to 125°C. However, it's essential to ensure that the device is properly cooled to maintain reliability and performance.
  • The ADSP-21593KBPZ8 supports various error correction and detection mechanisms, such as ECC and parity checking. Implementing these mechanisms requires configuring the memory controllers and interfaces correctly, as well as using software libraries provided by Analog Devices.
  • While the ADSP-21593KBPZ8's peripherals are highly configurable, there are limitations to their usage. For example, the UART interface has a maximum baud rate of 12.5 Mbps, and the SPI interface has a maximum clock frequency of 50 MHz. Understanding these limitations is essential for designing a reliable and efficient system.
