ADSP-BF504BCPZ-4 - Analog Devices

ADSP-BF504BCPZ-4 Details

• Manufacturer Part Number:

  ADSP-BF504BCPZ-4

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

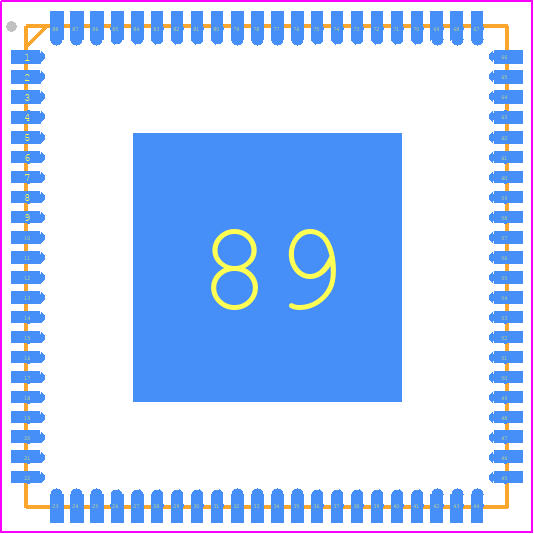

• Part Package Code:

  QFN

• Pin Count:

  88

• Manufacturer Package Code:

  CP-88-5

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  NO

• Clock Frequency-Max:

  50 MHz

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-XQCC-N88

• JESD-609 Code:

  e3

• Length:

  12 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  88

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC88,.47SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  0.85 mm

• Speed:

  400 MHz

• Supply Voltage-Max:

  5.25 V

• Supply Voltage-Min:

  2.7 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
