ADSP-BF506BSWZ-3F - Analog Devices

Description: ANALOG DEVICES - ADSP-BF506BSWZ-3F - DSP, Fixed Point, 16bit, 300 MHz, 4 MB, LQFP, 120 Pins

Download ADSP-BF506BSWZ-3F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF506BSWZ-3F - Analog Devices - PCB symbol
click to zoom
PCB Footprints

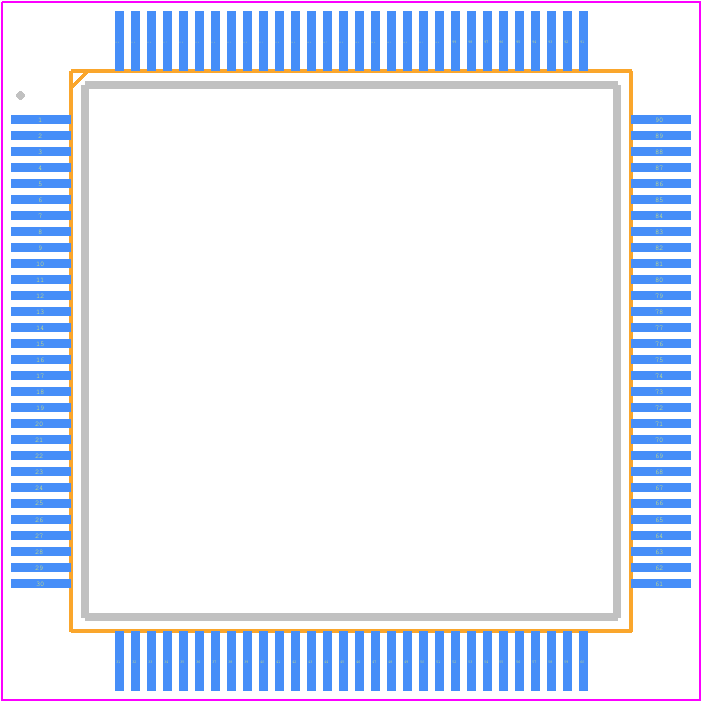

ADSP-BF506BSWZ-3F - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 120 LQFP
click to zoom
3D Models
ADSP-BF506BSWZ-3F - Analog Devices - 3D model - Quad Flat Packages - 120 LQFP
click to zoom

ADSP-BF506BSWZ-3F Details

  • Manufacturer Part Number:

    ADSP-BF506BSWZ-3F

  • Source Url Status Check Date:

    2013-05-01 14:56:48.903

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    ROHS COMPLIANT, LQFP_EP-120

  • Pin Count:

    120

  • Manufacturer Package Code:

    SW-120-2

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • Clock Frequency-Max:

    50 MHz

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G120

  • Length:

    14 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    120

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP120,.63SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF506BSWZ-3F Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDDSP and VDDIO. This ensures proper power-up and minimizes the risk of latch-up or damage to the device.
  • To optimize performance, consider the following: use the highest possible clock frequency, optimize memory access patterns, use the cache effectively, and minimize the number of context switches. Additionally, use the VisualDSP++ development environment to analyze and optimize your code.
  • The JTAG interface has a maximum clock frequency of 10 MHz, and it is recommended to use a JTAG adapter with a buffer to ensure signal integrity. Additionally, the JTAG interface is only available when the device is in debug mode.
  • To ensure reliable data transfer, use the DMA controller to offload data transfer tasks, implement error detection and correction mechanisms, and use the device's built-in FIFOs to buffer data. Additionally, ensure that the peripheral devices are properly configured and synchronized with the ADSP-BF506BSWZ-3F.
  • The ADSP-BF506BSWZ-3F has a maximum junction temperature of 125°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Monitor the device's temperature using the on-chip temperature sensor and take corrective action if the temperature exceeds the recommended limit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-BF506BSWZ-3F Overview

Use the download button to access the ADSP-BF506BSWZ-3F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
