ADSP-BF512BBCZ-4F4 - Analog Devices

Description: Blackfin Embedded Processor

Download ADSP-BF512BBCZ-4F4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF512BBCZ-4F4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

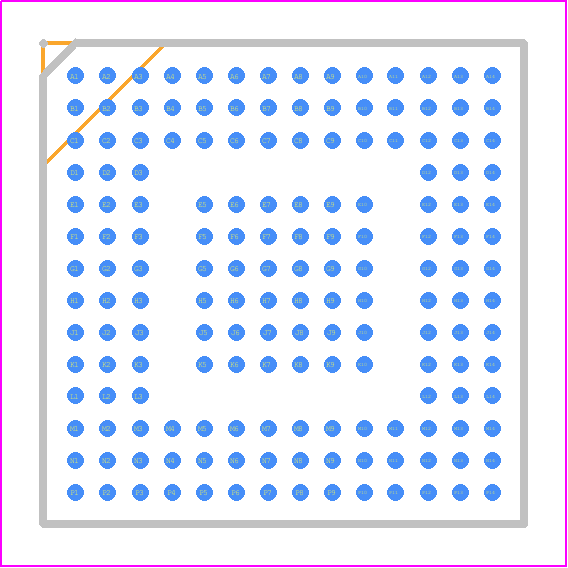

ADSP-BF512BBCZ-4F4 - Analog Devices PCB footprint - BGA - BGA - 168-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-168-1)
click to zoom
3D Models
ADSP-BF512BBCZ-4F4 - Analog Devices - 3D model - BGA - 168-Ball Chip Scale Package Ball Grid Array [CSP_BGA] (BC-168-1)
click to zoom

ADSP-BF512BBCZ-4F4 Details

  • Manufacturer Part Number:

    ADSP-BF512BBCZ-4F4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, MO-275GGAB-1, CSPBGA-168

  • Pin Count:

    168

  • Manufacturer Package Code:

    BC-168-1

  • ECCN Code:

    3A991.a.2

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Address Bus Width:

    19

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    400 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B168

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    168

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA168,14X14,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Speed:

    400 MHz

  • Supply Voltage-Max:

    1.47 V

  • Supply Voltage-Min:

    1.164 V

  • Supply Voltage-Nom:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF512BBCZ-4F4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC first, followed by VDDDSP, and then finally VCC. This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, consider the following: use the highest possible clock frequency, optimize code for the Blackfin processor's dual-MAC architecture, use the on-chip peripherals and DMA controllers to minimize overhead, and use the cache and scratchpad memory effectively.
  • The JTAG interface has some limitations, including a maximum clock frequency of 10 MHz, and a requirement for a specific JTAG adapter and software toolchain. Additionally, some JTAG commands may not be supported or may have limitations in certain modes.
  • To ensure reliable booting, use a high-quality external flash memory device, ensure that the flash memory is properly connected and configured, and use the boot mode pins to select the correct boot mode. Additionally, consider using a boot loader or boot ROM to simplify the boot process.
  • The ADSP-BF512BBCZ-4F4 has a maximum junction temperature of 125°C. To manage thermal performance, use a heat sink or thermal interface material, ensure good airflow, and consider using a thermal monitoring and shutdown mechanism to prevent overheating.
