ADSP-BF524KBCZ-4 - Analog Devices

Description: Blackfin Embedded Processor

Download ADSP-BF524KBCZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF524KBCZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

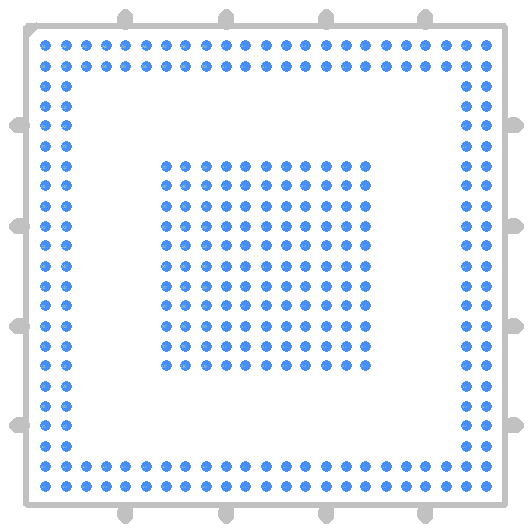

ADSP-BF524KBCZ-4 - Analog Devices PCB footprint - Other - Other - BGA289C50P23X23_1200X1200X140
click to zoom
3D Models
ADSP-BF524KBCZ-4 - Analog Devices - 3D model - Other - BGA289C50P23X23_1200X1200X140
click to zoom

ADSP-BF524KBCZ-4 Details

  • Manufacturer Part Number:

    ADSP-BF524KBCZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, MO-275GGCE-1, CSPBGA-289

  • Pin Count:

    289

  • Manufacturer Package Code:

    BC-289-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    19

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    50 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B289

  • JESD-609 Code:

    e1

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    289

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA289,23X23,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.4 mm

  • Speed:

    400 MHz

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF524KBCZ-4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or damage to the device.
  • To optimize performance, consider the following: (1) optimize code for the Blackfin processor's dual-MAC architecture, (2) use the cache effectively, (3) minimize memory accesses, and (4) use the DMA controller to offload data transfers. Additionally, consider using the VisualDSP++ development environment to optimize and fine-tune your code.
  • The ADSP-BF524KBCZ-4 has a maximum junction temperature of 125°C. To ensure reliable operation, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider using a heat sink or thermal interface material if necessary.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as necessary. Additionally, consider using the ADSP-BF524KBCZ-4's built-in features, such as spread spectrum clocking and power management, to reduce electromagnetic emissions.
  • When using the ADSP-BF524KBCZ-4 in a harsh environment, consider the operating temperature range (-40°C to 85°C), humidity, and vibration. Ensure the device is properly packaged and sealed, and consider using conformal coating or potting to protect the device from environmental stresses.
