- Stock & Prices $ Price & Stock for ADSP-BF526BBCZ-3A
- Part Number ADSP-BF526BBCZ-3A
- Manufacturer Analog Devices
- Pin Count 208
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - BGA208C80P20X20_1700X1700X175
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADSP-BF526BBCZ-3A Details
-
Manufacturer Part Number:
ADSP-BF526BBCZ-3A
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
BGA
-
Package Description:
ROHS COMPLIANT, MO-275MMAB-1, CSPBGA-208
-
Pin Count:
208
-
Manufacturer Package Code:
BC-208-2
-
Country Of Origin:
Singapore
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
ADSP-BF526BBCZ-3A Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
-
Optimizing performance involves understanding the application's requirements and configuring the processor accordingly. This includes selecting the appropriate clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-BF526BBCZ-3A's software development kit (SDK) and application notes for guidance.
-
The ADSP-BF526BBCZ-3A has a maximum junction temperature of 125°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB. Consult the datasheet and thermal management application notes for more information.
-
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-BF526BBCZ-3A's EMC application notes and relevant industry standards.
-
In harsh environments, consider the processor's operating temperature range, humidity, and vibration tolerance. Ensure the system is designed to withstand these conditions, and consider using conformal coating, potting, or other environmental protection methods as needed.
Trust Checks
System Verified
ADSP-BF526BBCZ-3A Overview

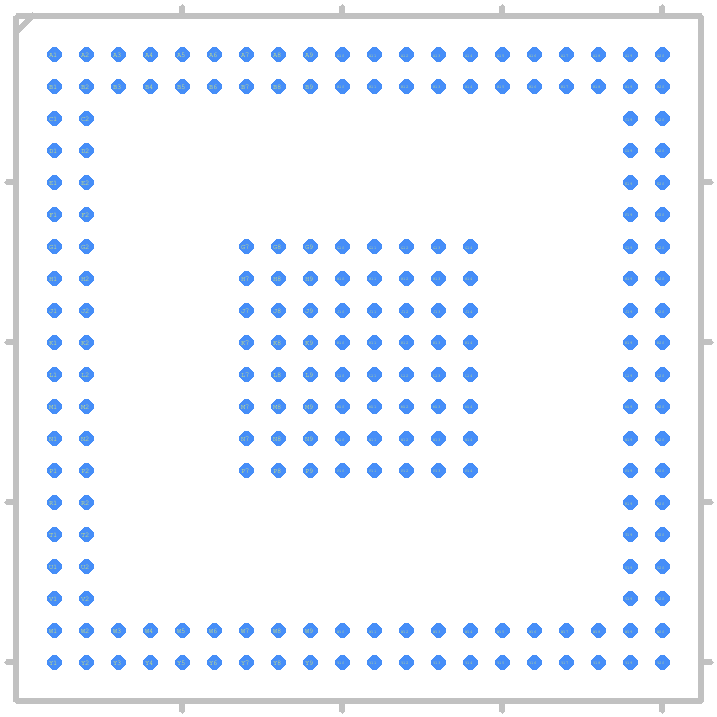

Use the download button to access the ADSP-BF526BBCZ-3A schematic symbol, PCB footprint, and 3D model.
