ADSP-BF535PKBZ-350 - Analog Devices

Description: ANALOG DEVICES - ADSP-BF535PKBZ-350 - DSP, FIXED, 16/32BIT, 300MHZ, BGA-260

Download ADSP-BF535PKBZ-350 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF535PKBZ-350 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

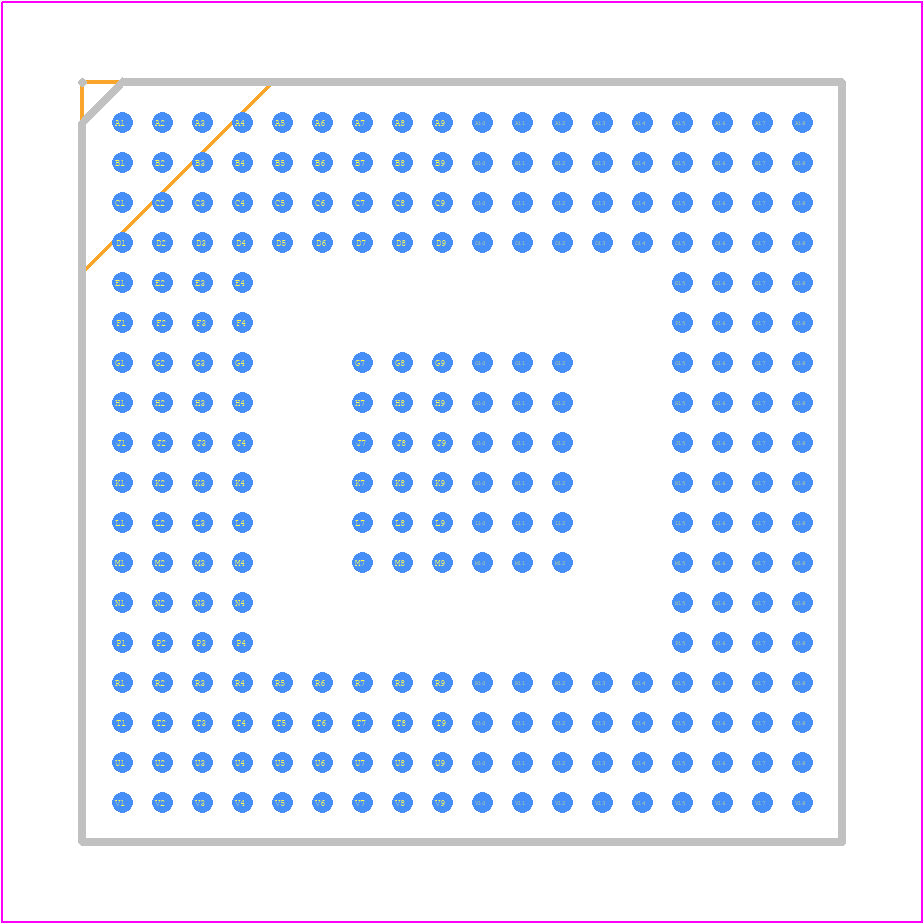

ADSP-BF535PKBZ-350 - Analog Devices PCB footprint - BGA - BGA - B-260
click to zoom
3D Models
ADSP-BF535PKBZ-350 - Analog Devices - 3D model - BGA - B-260
click to zoom

ADSP-BF535PKBZ-350 Details

  • Manufacturer Part Number:

    ADSP-BF535PKBZ-350

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Pin Count:

    260

  • HTS Code:

    8542.31.00.35

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Technology:

    CMOS

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF535PKBZ-350 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-BF535PKBZ-350's software development kit (SDK) and application notes for guidance.
  • The ADSP-BF535PKBZ-350 has a maximum junction temperature of 125°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-BF535PKBZ-350's EMC application notes and relevant industry standards.
  • The ADSP-BF535PKBZ-350 is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic sealing to protect the device. Consult the datasheet and application notes for more information.
