ADSP-BF538BBCZ-5F8 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC

Download ADSP-BF538BBCZ-5F8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF538BBCZ-5F8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

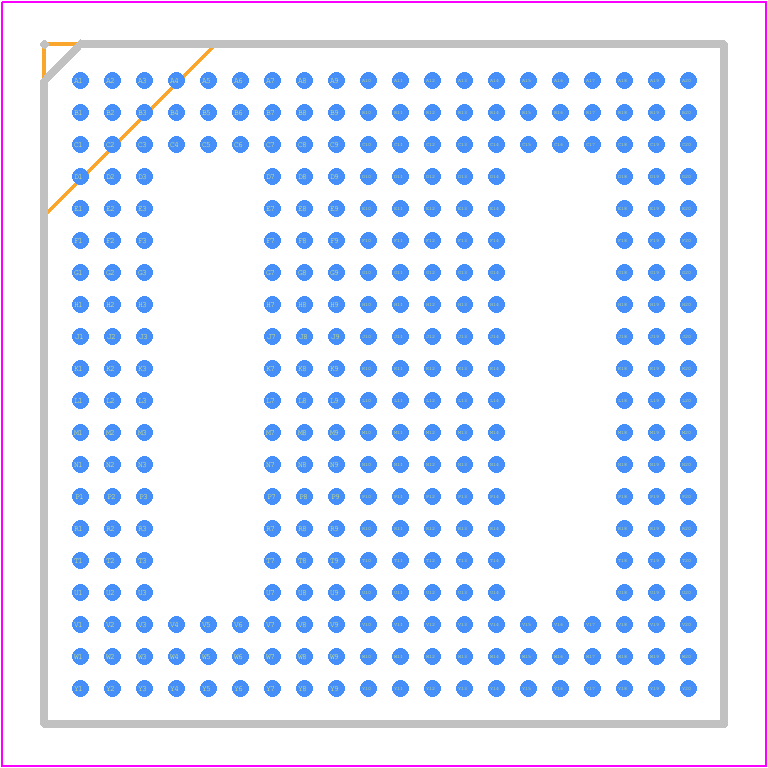

ADSP-BF538BBCZ-5F8 - Analog Devices PCB footprint - BGA - BGA - 316-Ball CSP_BGA
click to zoom
3D Models
ADSP-BF538BBCZ-5F8 - Analog Devices - 3D model - BGA - 316-Ball CSP_BGA
click to zoom

ADSP-BF538BBCZ-5F8 Details

  • Manufacturer Part Number:

    ADSP-BF538BBCZ-5F8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, MO-205AM, MBGA-316

  • Pin Count:

    316

  • Manufacturer Package Code:

    BC-316

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Additional Feature:

    ALSO REQUIRES 2.5V OR 3.3V SUPPLY

  • Address Bus Width:

    20

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    50 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B316

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    316

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA316,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Speed:

    400 MHz

  • Supply Voltage-Max:

    1.32 V

  • Supply Voltage-Min:

    0.8 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF538BBCZ-5F8 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the specific requirements of your application. Consider factors such as clock speed, memory usage, and peripheral utilization. Use the VisualDSP++ development environment to analyze and optimize your code. Additionally, consult the ADSP-BF538BBCZ-5F8 datasheet and application notes for guidance on optimizing performance.
  • The ADSP-BF538BBCZ-5F8 has a maximum junction temperature of 125°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to dissipate heat. Follow the thermal management guidelines in the datasheet and application notes to prevent overheating and ensure reliable operation.
  • Start by consulting the datasheet and application notes for troubleshooting guidelines. Use the VisualDSP++ development environment to debug your code and identify issues. Check for proper power-up sequencing, clock configuration, and peripheral initialization. If issues persist, contact Analog Devices support for further assistance.
  • Follow proper PCB design and layout guidelines to minimize EMI and ensure EMC. Use shielding, grounding, and filtering techniques to reduce emissions and susceptibility. Consult the datasheet and application notes for specific guidance on EMI and EMC considerations.
