ADSP-BF547MBBCZ-5M - Analog Devices

ADSP-BF547MBBCZ-5M Details

• Manufacturer Part Number:

  ADSP-BF547MBBCZ-5M

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BGA

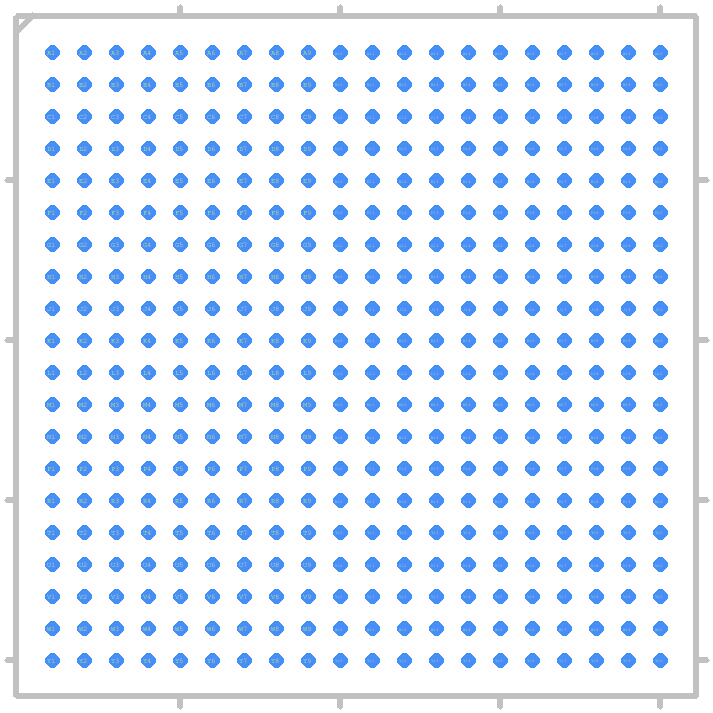

• Package Description:

  17 X 17 MM, ROHS COMPLIANT, CSBGA-400

• Pin Count:

  400

• Manufacturer Package Code:

  BC-400-1

• Country Of Origin:

  South Korea

• ECCN Code:

  5A992.C

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Address Bus Width:

  22

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B400

• JESD-609 Code:

  e1

• Length:

  17 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  400

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA400,20X20,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7 mm

• Speed:

  533 MHz

• Supply Voltage-Max:

  1.43 V

• Supply Voltage-Min:

  1.188 V

• Supply Voltage-Nom:

  1.25 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  17 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
