ADSP-BF702BCPZ-4 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC Low Cost sngl core BF+ w/larg int l mem

Download ADSP-BF702BCPZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF702BCPZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

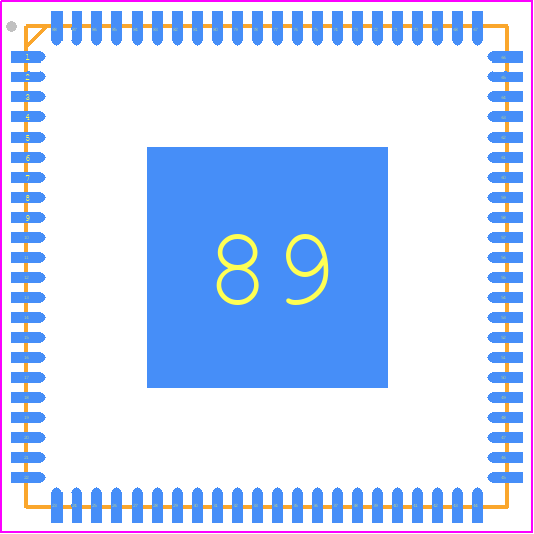

ADSP-BF702BCPZ-4 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - [LFCSP_VQ]
click to zoom
3D Models
ADSP-BF702BCPZ-4 - Analog Devices - 3D model - Quad Flat No-Lead - [LFCSP_VQ]
click to zoom

ADSP-BF702BCPZ-4 Details

  • Manufacturer Part Number:

    ADSP-BF702BCPZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-88

  • Pin Count:

    88

  • Manufacturer Package Code:

    CP-88-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    14

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    60 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-XQCC-N88

  • JESD-609 Code:

    e3

  • Length:

    12 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Serial I/Os:

    4

  • Number of Terminals:

    88

  • Number of Timers:

    8

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC88,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    12 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF702BCPZ-4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD_INT and VDD_DDR simultaneously, followed by VDD_CORE and VDD_PLL. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache, and optimizing memory access patterns. Consult the ADSP-BF702BCPZ-4's software development kit (SDK) and application notes for guidance.
  • The ADSP-BF702BCPZ-4 has a maximum junction temperature of 125°C. Ensure proper heat sinking, thermal interface material, and airflow to maintain a safe operating temperature. Consult the datasheet and thermal management application notes for more information.
  • Follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-BF702BCPZ-4's EMC application notes and relevant industry standards (e.g., IEC 61000-4) for guidance.
  • The ADSP-BF702BCPZ-4 is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic packaging to protect the device. Consult the datasheet and relevant industry standards (e.g., IEC 60068) for guidance.
